Kolpak Walk In Cooler Refrigeration Package 460V 3PH Condenser with Dual Evaporators

Commercial walk in cooler refrigeration package consisting of one outdoor condensing unit and two indoor ceiling mounted evaporator fan units. Manufactured by Kolpak / Heat Transfer Products Group. Removed from a controlled environment agriculture facility and suitable for produce storage, seed storage, food processing, floral coolers, warehouse cold rooms, and other commercial refrigeration applications.

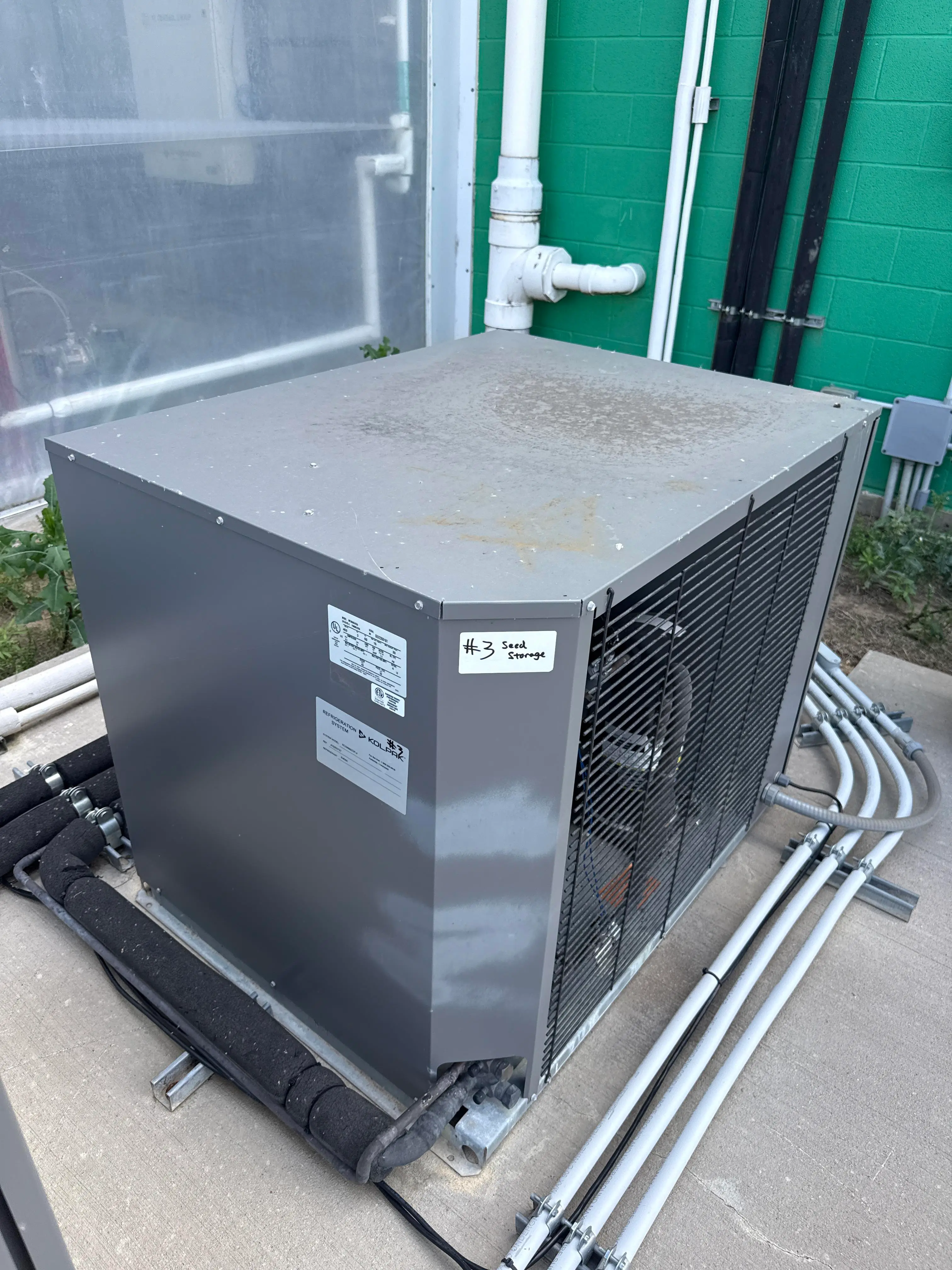

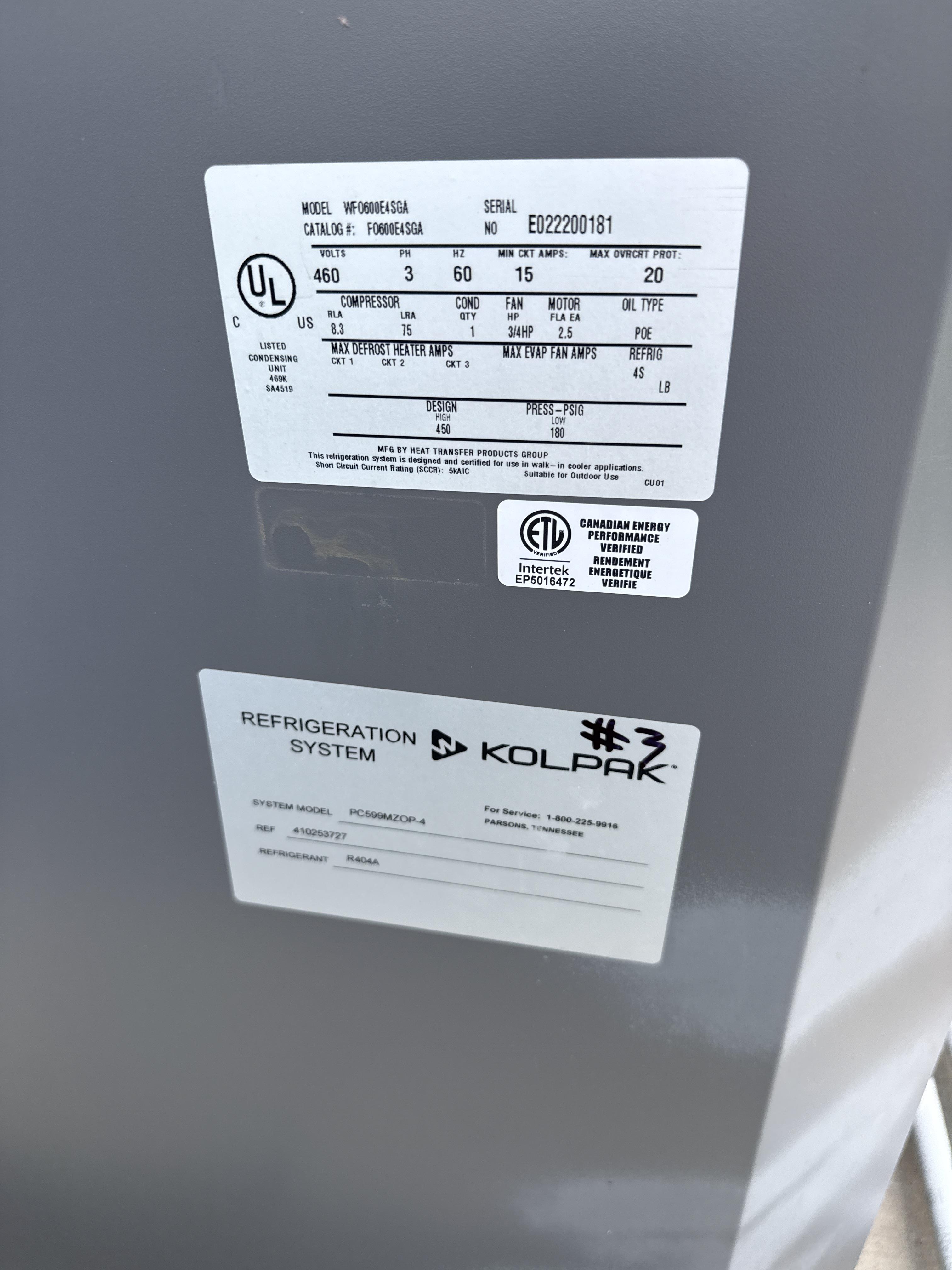

Outdoor condensing unit nameplate visible: Model WF0600E4SGA, Catalog F0600E4SGA, Serial E022200181. Electrical requirements 460 Volt, 3 Phase, 60 Hz. Minimum circuit amps 15. Maximum overcurrent protection 20. Compressor RLA 8.3, LRA 75. Condenser fan motor 3/4 HP, FLA 2.5. Oil type POE. Refrigerant charge listed 4.5 lbs. Design pressure 450 PSIG high side and 180 PSIG low side. Suitable for outdoor use.

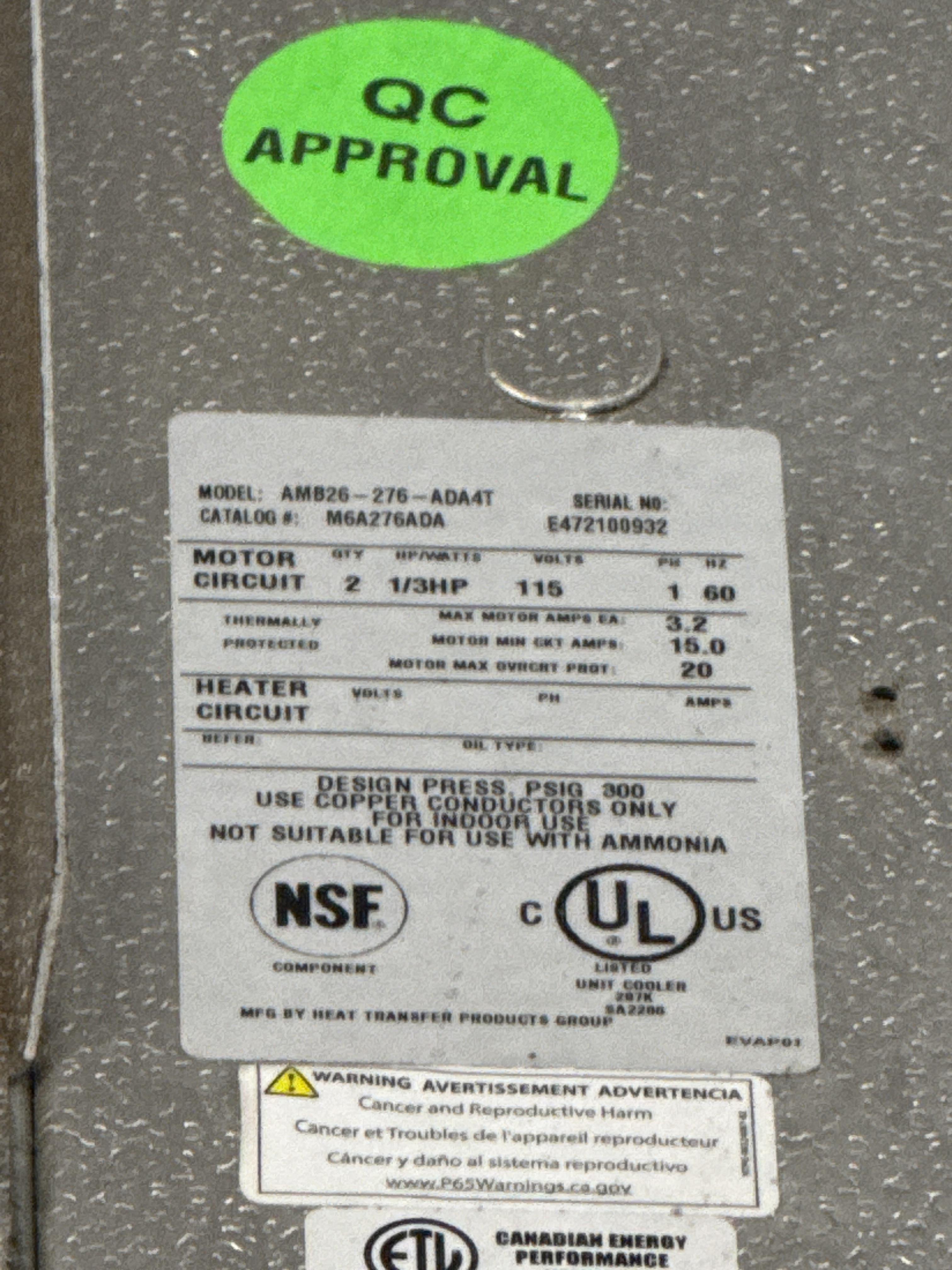

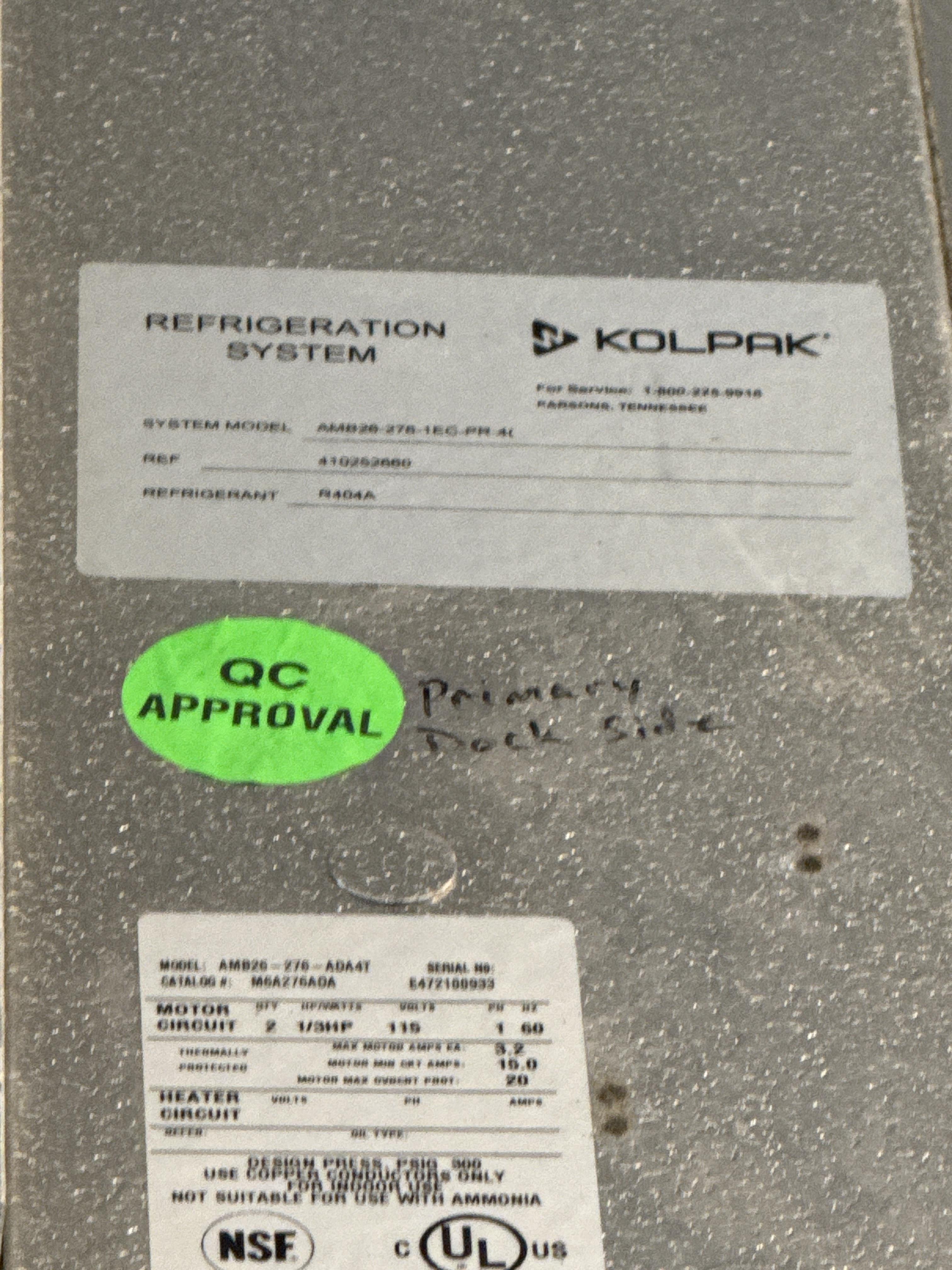

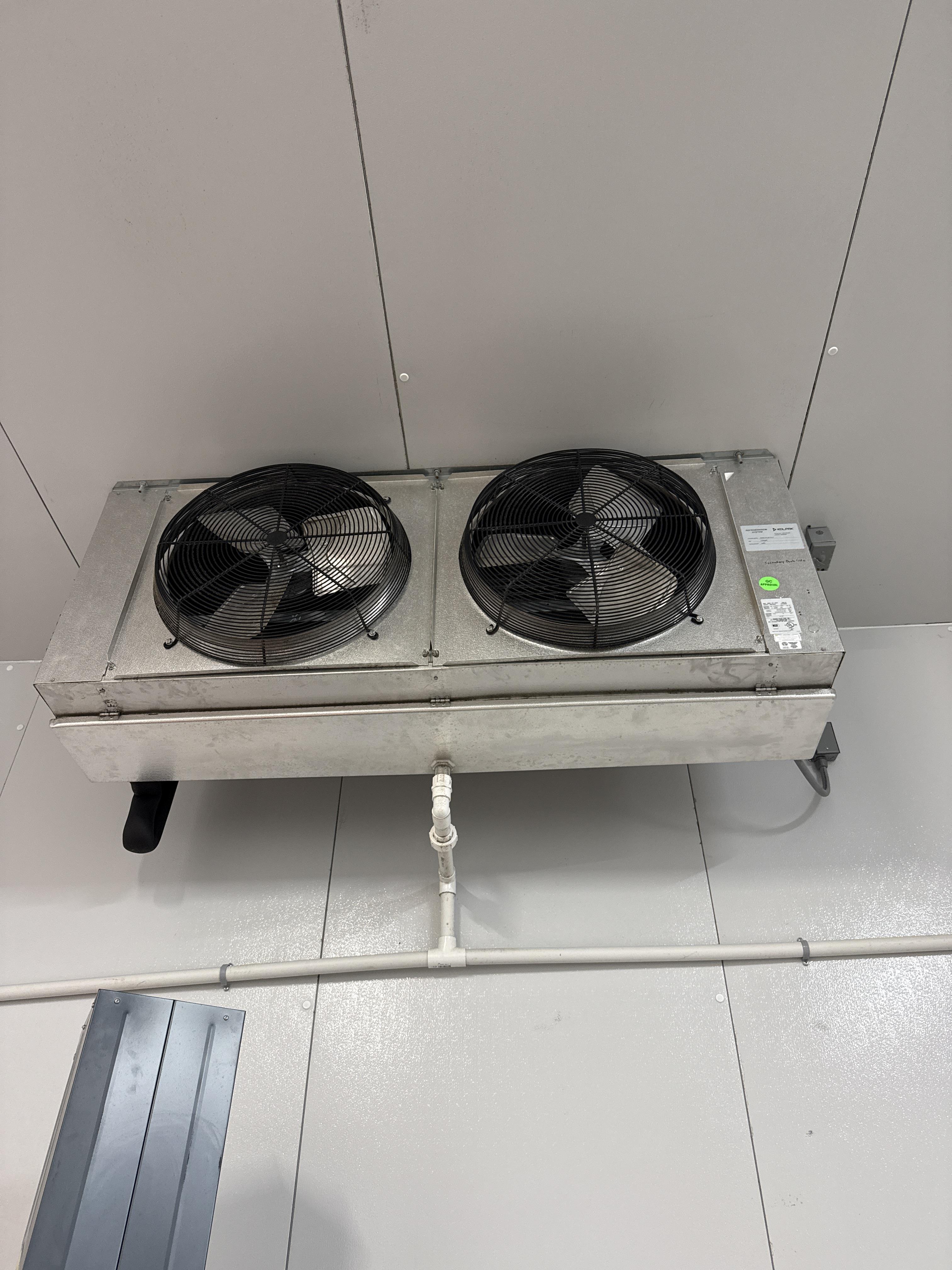

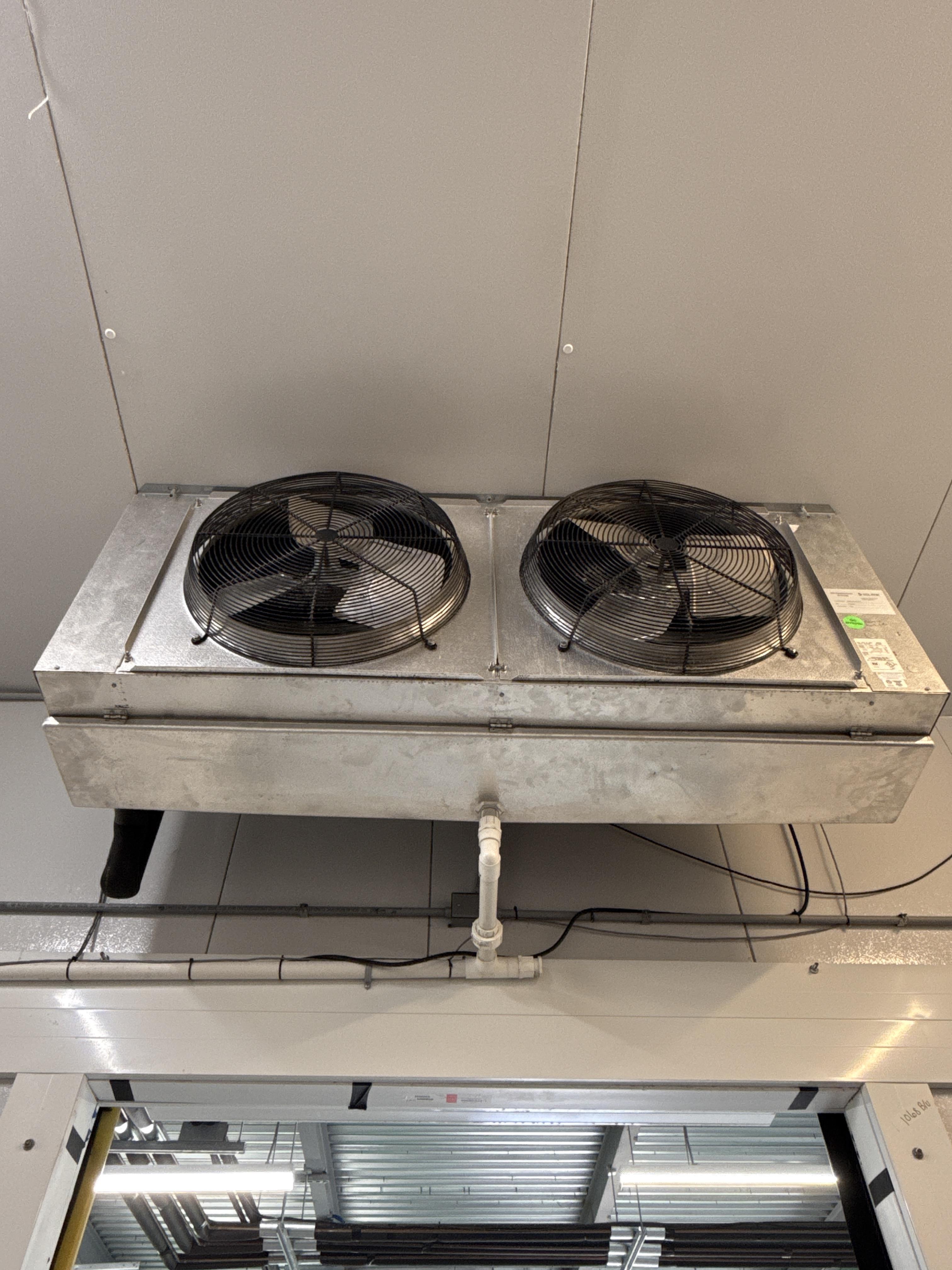

Indoor evaporator tag visible: Model AMB26-276-ADA4T, Catalog M6A276ADA, Serial E472100932. Two fan ceiling mounted evaporator unit with 2 motors rated 1/3 HP each, 115 Volt, 1 Phase, 60 Hz. Maximum motor amps 3.2. Motor minimum circuit amps 15. Maximum overcurrent protection 20. Refrigerant R404A.
