Eaton 45 kVA Dry Type 3 Phase Transformer 480V Delta to 208Y/120V 2024

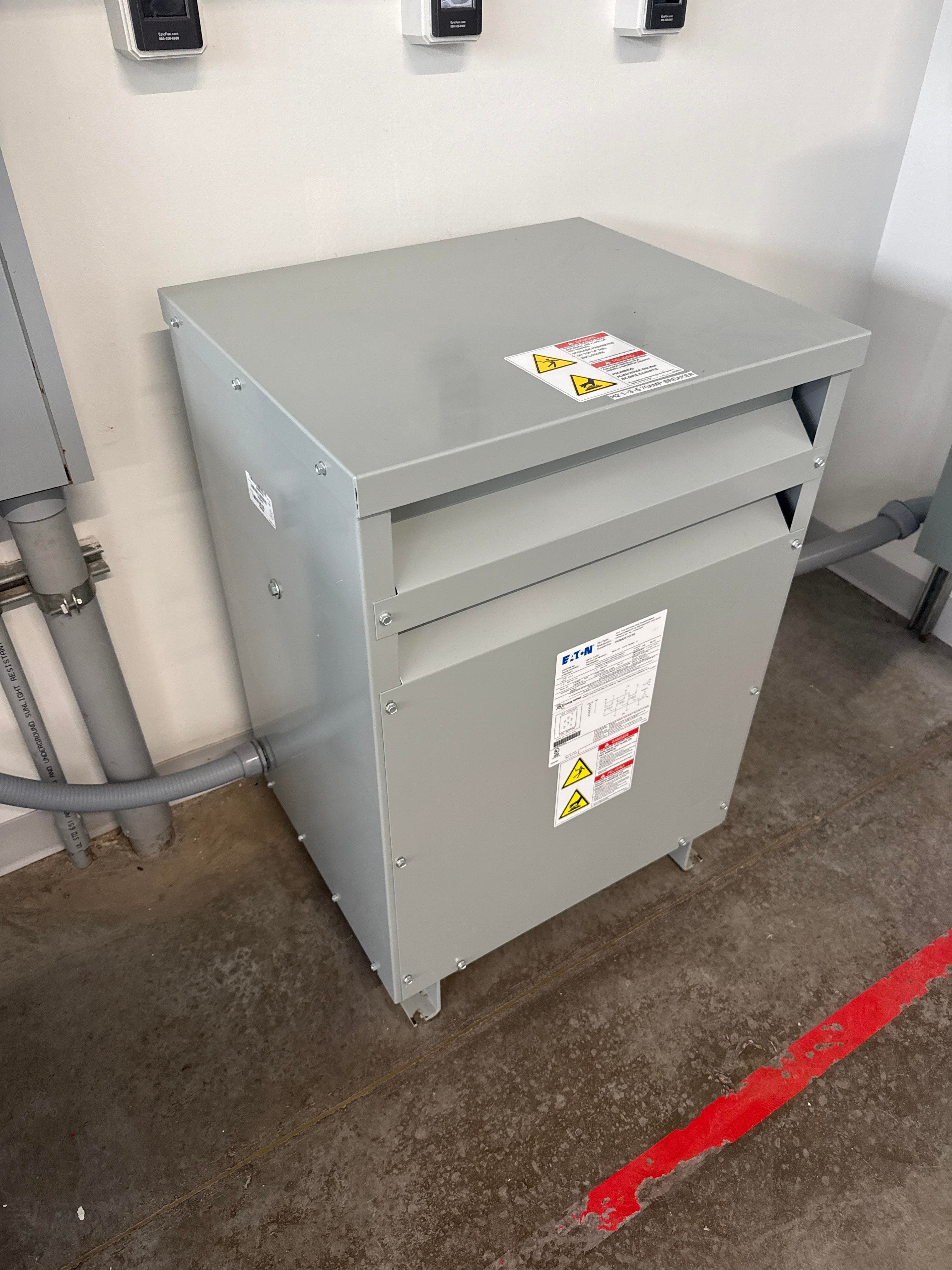

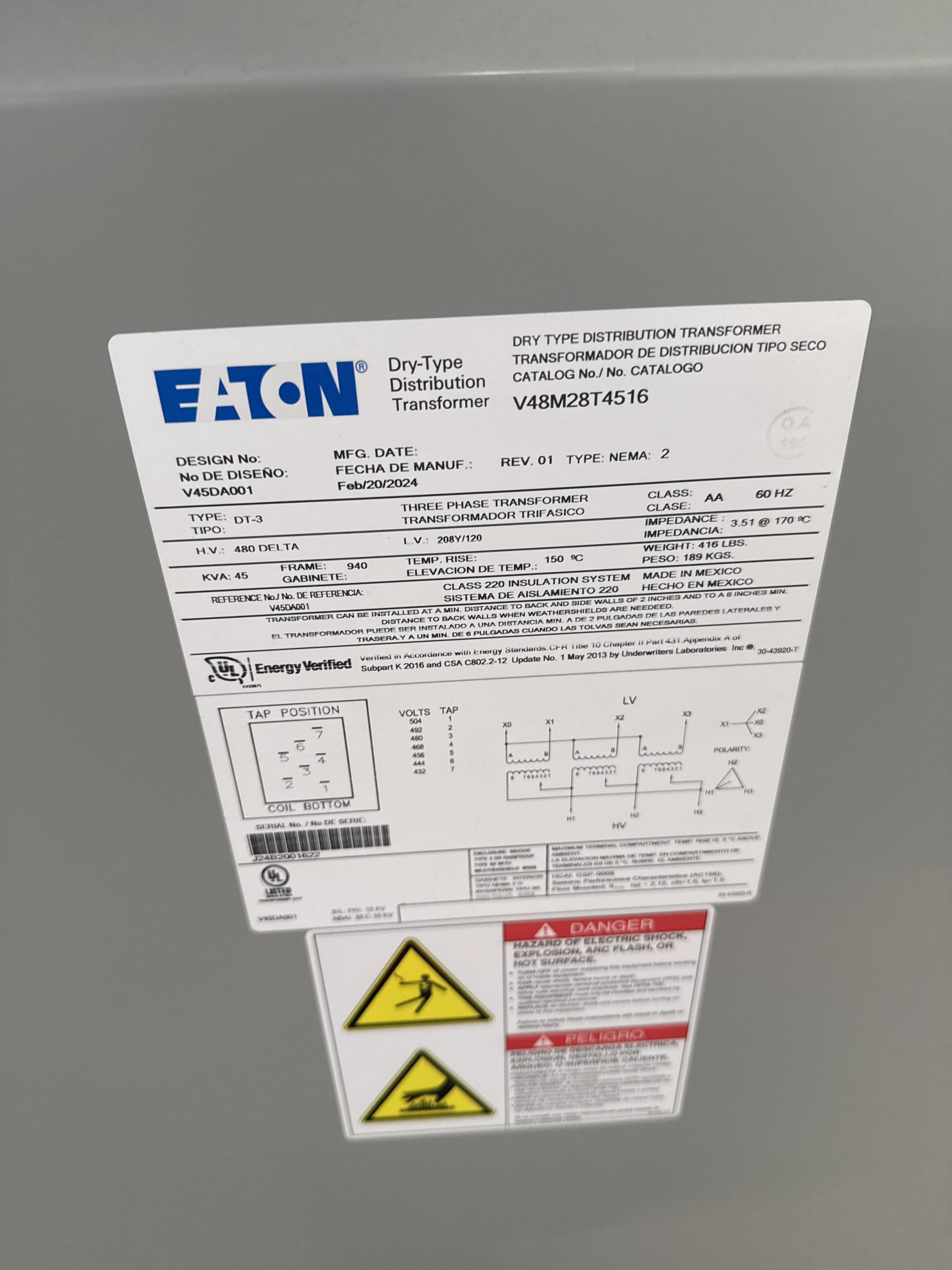

Commercial Eaton dry type distribution transformer used to step down 480V three phase delta service to 208Y/120V three phase four wire power for downstream panelboards, lighting, receptacles, HVAC, and equipment loads. Indoor floor mounted unit with ventilated enclosure and conduit connections installed. Nameplate Specifications: • Manufacturer: Eaton • Type: Dry Type Distribution Transformer • Catalog No.: V48M28T4516 • Design No.: V45DA001 • Type Code: DT 3 • NEMA Type: 2 • Revision: 01 • MFG Date: February 20, 2024 • kVA Rating: 45 • Phase: Three Phase • Frequency: 60 Hz • High Voltage: 480V Delta • Low Voltage: 208Y/120V • Class: AA • Impedance: 3.51% at 170°C • Temperature Rise: 150°C • Insulation System: Class 220 • Weight: 416 lbs / 189 kgs • BIL Primary: 10 kV • NBAI Secondary: 10 kV • Made in Mexico
