Triacta PowerHawk 480V Delta PT Module with Installation Guide | Chesterton, IN

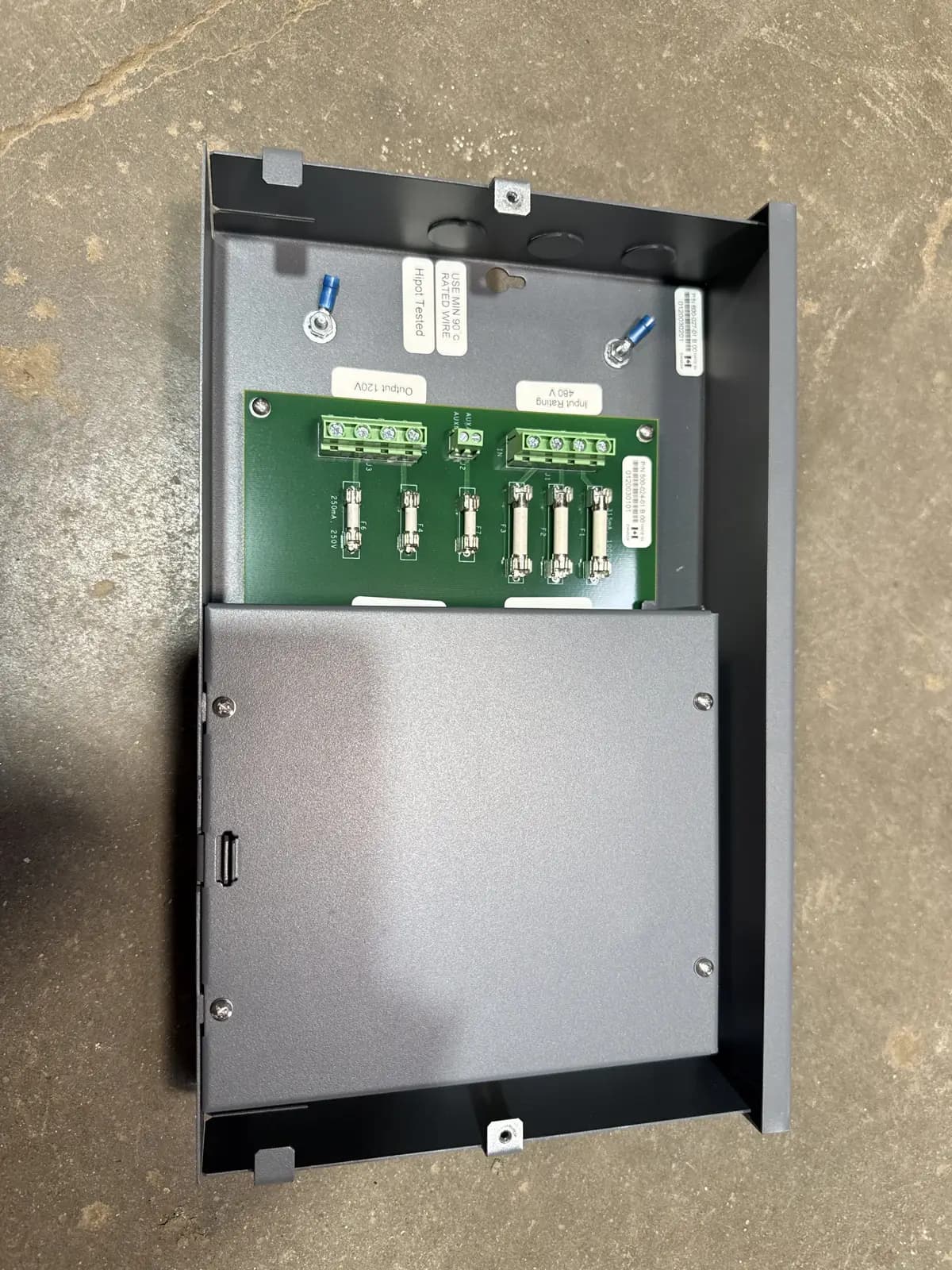

TRIACTA POWERHAWK PT MODULE - 480V DELTA, P/N 900-027-01 The PT (potential transformer) module that steps a 480V delta service down to 120V for a Triacta PowerHawk revenue-grade submeter. Without one of these, a PowerHawk cannot be applied to a 480V service - which is exactly why the module tends to be the missing piece on a 480V submetering retrofit. WHAT IS INCLUDED - Triacta PowerHawk Delta PT Module in painted steel enclosure with removable cover, marked "480V - DELTA PT MODULE" - Fused PT interface board, P/N 500-024-01 B.00, serial 0120030101, made in Canada - Enclosure P/N 900-027-01 B.00, serial 0120030201, made in Canada - Six-position fuse bank: F1/F2/F3 rated 315 mA 1000V on the 480V input side; F4/F6/F7 rated 250 mA 250V on the 120V output side - Pluggable green terminal blocks: J1 IN (480V input), J2 AUX / AUXN, J3 OUT (120V output) - Two grounding lugs with ring terminals installed - Hinged/screwed inner shield over the PT assembly - Knockouts for conduit entry, factory mounting tabs - Original Triacta PowerHawk PT Module Installation Guide (doc 930-135-01-A.02, 05/2014) FACTORY MARKINGS "Input Rating 480 V", "Output 120V", "USE MIN 90 C RATED WIRE", "Hipot Tested". WHO NEEDS THIS Submetering contractors and energy-management integrators commissioning Triacta PowerHawk meters on 480V delta services; building owners and REITs running tenant submetering; anyone holding PowerHawk meters who needs the 480V front end to complete an install. CONDITION Appears new and unused - clean board, unused terminal blocks, no field wiring marks, factory labels intact and the installation guide still with the unit. Light storage dust and handling marks on the enclosure. NOT powered up or electrically tested by SecondBloom. Meter, CTs and field wiring are NOT included. Sold as-is with no warranty. PRICING NOTE Triacta does not publish list pricing on this module; the reserve and Buy Now here are based on a conservative estimate of replacement cost for a comparable 480V PT module. Contact us if you need documentation for a purchasing file. LOGISTICS FOB Chesterton, Indiana 46304. Shipping is NOT included and is not offered through the platform for this lot. Buyer is responsible for pickup or for arranging and paying their own carrier. Sold as-is, where-is. Questions or to schedule an inspection, contact SecondBloom Auctions at info@secondbloomauctions.com or (312) 497-6522.
