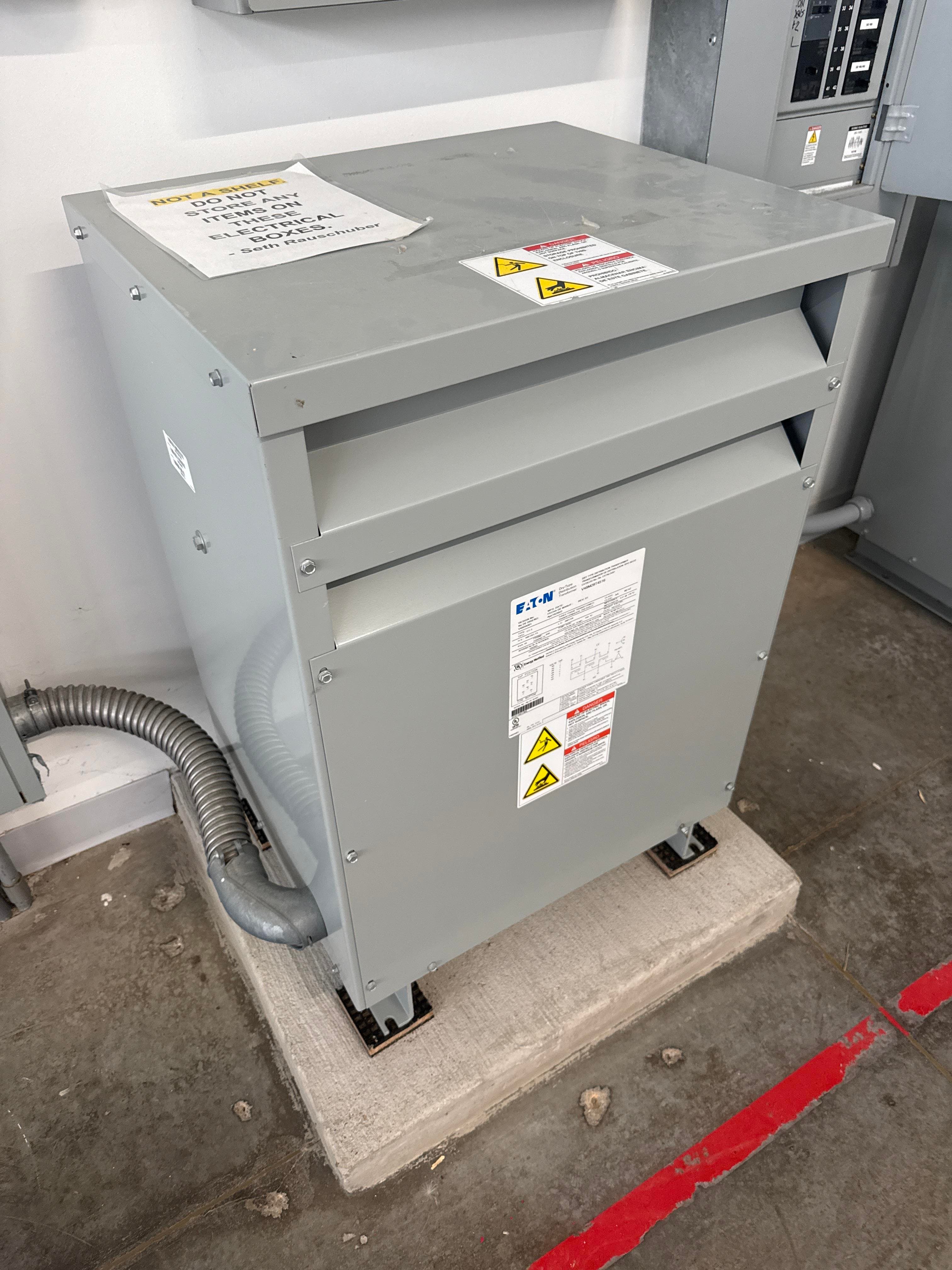

Eaton 45 kVA Dry Type 3 Phase Transformer 480V Delta to 208Y/120V 2022

Commercial Eaton dry type distribution transformer used for stepping down facility power from 480V three phase delta to 208Y/120V three phase four wire service. Indoor floor mounted unit installed on concrete housekeeping pad with conduit connections in place. Suitable for commercial, industrial, warehouse, greenhouse, and processing facility power distribution.

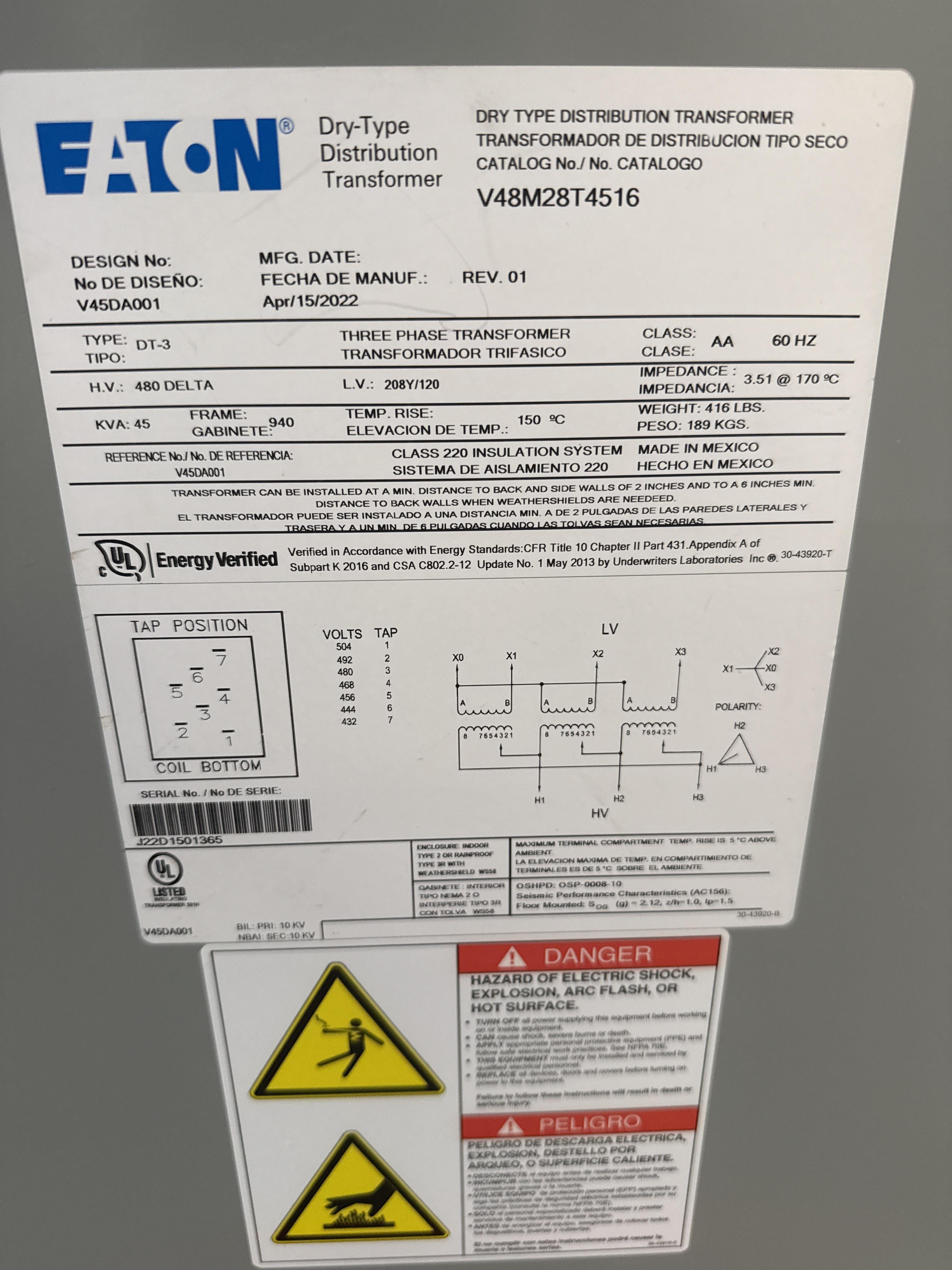

Nameplate Specifications:

• Manufacturer: Eaton

• Type: Dry Type Distribution Transformer

• Catalog No.: V48M28T4516

• Design No.: V45DA001

• Type Code: DT 3

• MFG Date: April 15, 2022

• Revision: 01

• kVA Rating: 45

• Phase: Three Phase

• Frequency: 60 Hz

• High Voltage: 480V Delta

• Low Voltage: 208Y/120V

• Insulation Class: 220

• Temperature Rise: 150°C

• Class: AA

• Impedance: 3.51% at 170°C

• Weight: 416 lbs / 189 kgs

• BIL Primary: 10 kV

• NBAI Secondary: 10 kV

• Made in Mexico
