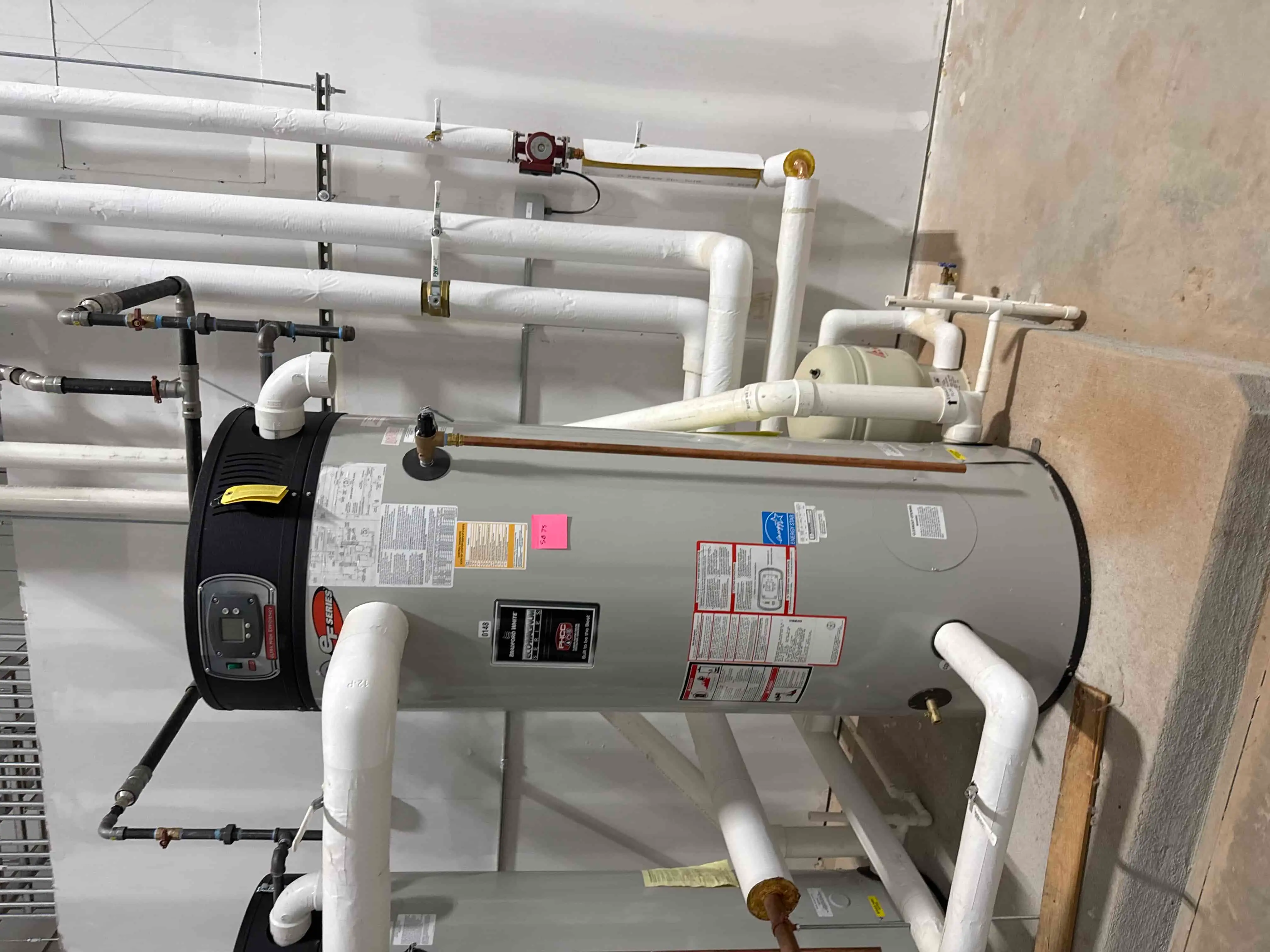

Bradford White Eco-Magnum Series EF Commercial Gas Water Heater, Energy Saver Model, High Efficiency, Natural Gas, 100 Gallon

This lot is a Bradford White Eco-Magnum Series EF commercial water heater, part of the Energy Saver line designed for commercial and light industrial applications.

This high-efficiency unit provides continuous hot water for facility use such as wash-down, processing, and HVAC support.

The heater uses a sealed-combustion natural gas system, offering excellent thermal performance and energy savings.

Key Specifications (per Bradford White Eco-Magnum EF Series):

Manufacturer: Bradford White Corporation

Series: Eco-Magnum EF Energy Saver

Fuel Type: Natural Gas

Tank Capacity: 100 gallons (nominal)

Input Power: Typically 199,000 to 300,000 BTU/hr (verify exact model on rating plate)

Recovery Rate: ~250 gallons per hour at 100°F rise (typical for 300K BTU/hr unit)

Thermal Efficiency: Up to 95%

Vent Type: Sealed combustion, power-vented (PVC venting)

Electrical: 120 V control circuit

Combustion Control: ICON HD intelligent gas control with digital diagnostics

Tank Construction: Glass-lined steel tank with magnesium anode rods

Insulation: 2” thick foam for energy retention

Safety Features:

ICON HD system diagnostics

Flame arrestor design

Temperature and pressure relief valve

High-limit safety cutoff

The receiver tank provides stable air storage and pressure equalization for the compressed air system, while the oil condensate separator removes residual oil and water from discharge condensate before safe disposal — ensuring compliance with environmental discharge standards.

Both units are installed together as part of the facility’s Atlas Copco compressed air plant, located in the mechanical area adjacent to the air compressors.

Specifications – Air Receiver Tank

Manufacturer: Atlas Copco

Type: Vertical compressed air receiver tank

Orientation: Vertical, floor-mounted on pedestal base

Connections: Copper and flanged steel inlet/outlet lines

Pressure Gauge: Analog dial mounted on tank shell

Capacity: Approx. 240–400 gallons (estimated by scale and configuration)

Working Pressure: ~150 psi typical (verify tag)

Construction: Carbon steel with epoxy coating

Features:

Top-mounted safety valve and drain port

Flanged inlet/outlet with copper pipe network

Inspection manway and pressure instrumentation

Mounted on concrete housekeeping pad

Specifications – Oil Condensate Separator (Model OSC 170)

Manufacturer: Atlas Copco Airpower n.v.

Model: OSC 170

Type: Oil Condensate Separator (for compressed air systems)

Part Number: 8102047173

Max Working Pressure: 174 psi (12 bar)

Max System Flow: Approx. 370 cfm (typical for OSC 170)

Dry Weight: 36.4 lb

Year of Manufacture: 2022

Function:

Separates oil and water from compressor condensate

Ensures environmental compliance with clean discharge

Uses replaceable polypropylene absorption media

Housing: Gray polyethylene tank with quick-service access cover

Connections: Dual inlet/outlet hose fittings
