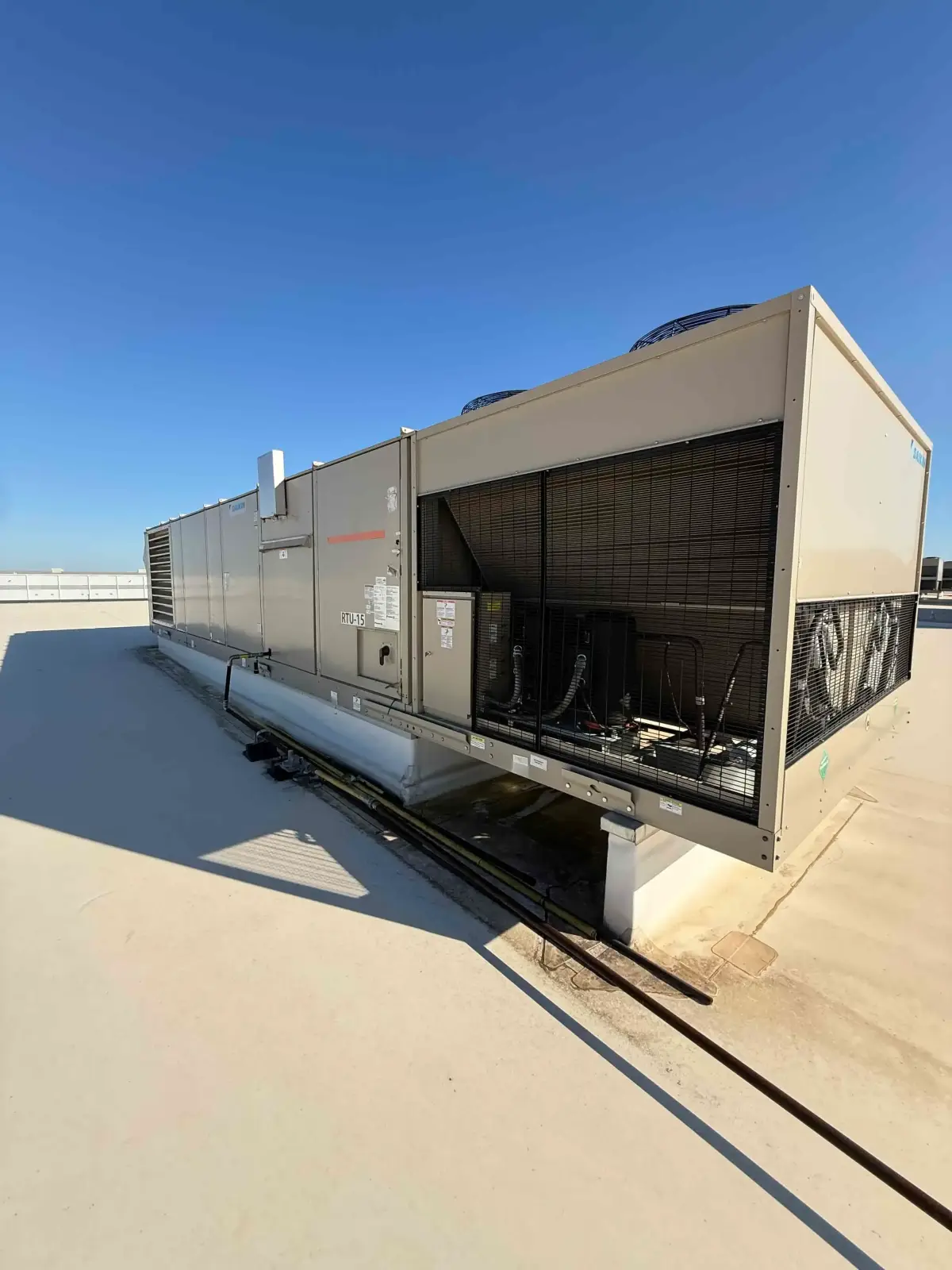

SB6024: RTU-15 – Daikin MPS061E Rooftop HVAC Unit, 60 Ton, 460 V 3-Phase, Gas Heat, Six Scroll Compressors, 30,615 CFM (Packaged DX/Gas System)

This listing is for RTU-15, a Daikin MPS061E rooftop unit designed for large-scale HVAC applications requiring robust cooling, gas heat, and high-volume air delivery. The system integrates multiple refrigeration circuits and heating sections in a single outdoor package, providing up to 60 tons (720,000 BTU/hr) of cooling capacity.

The Daikin MPS061E is part of Daikin’s commercial MPS line, known for durability, energy efficiency, and modular compressor staging. This particular configuration includes six independent scroll compressors, providing redundancy and optimized load matching. The gas-fired heat section offers 167 MBH heating input for year-round climate control.

The mechanical schedule confirms:

Model: MPS061E

Manufacturer: Daikin

Nominal Capacity: 60 tons (1,686 MBH total / 1,040 MBH sensible cooling)

Airflow: 30,615 CFM supply / 14,000 CFM exhaust

Power Supply: 460 V 3-phase, 60 Hz

Cooling System: Six scroll compressors across multiple DX circuits

Heating: Natural gas furnace section, 167 MBH input

Fans: 40 HP supply fan and 20 HP exhaust fan

EER: 9.8 | IEER: 13.1
