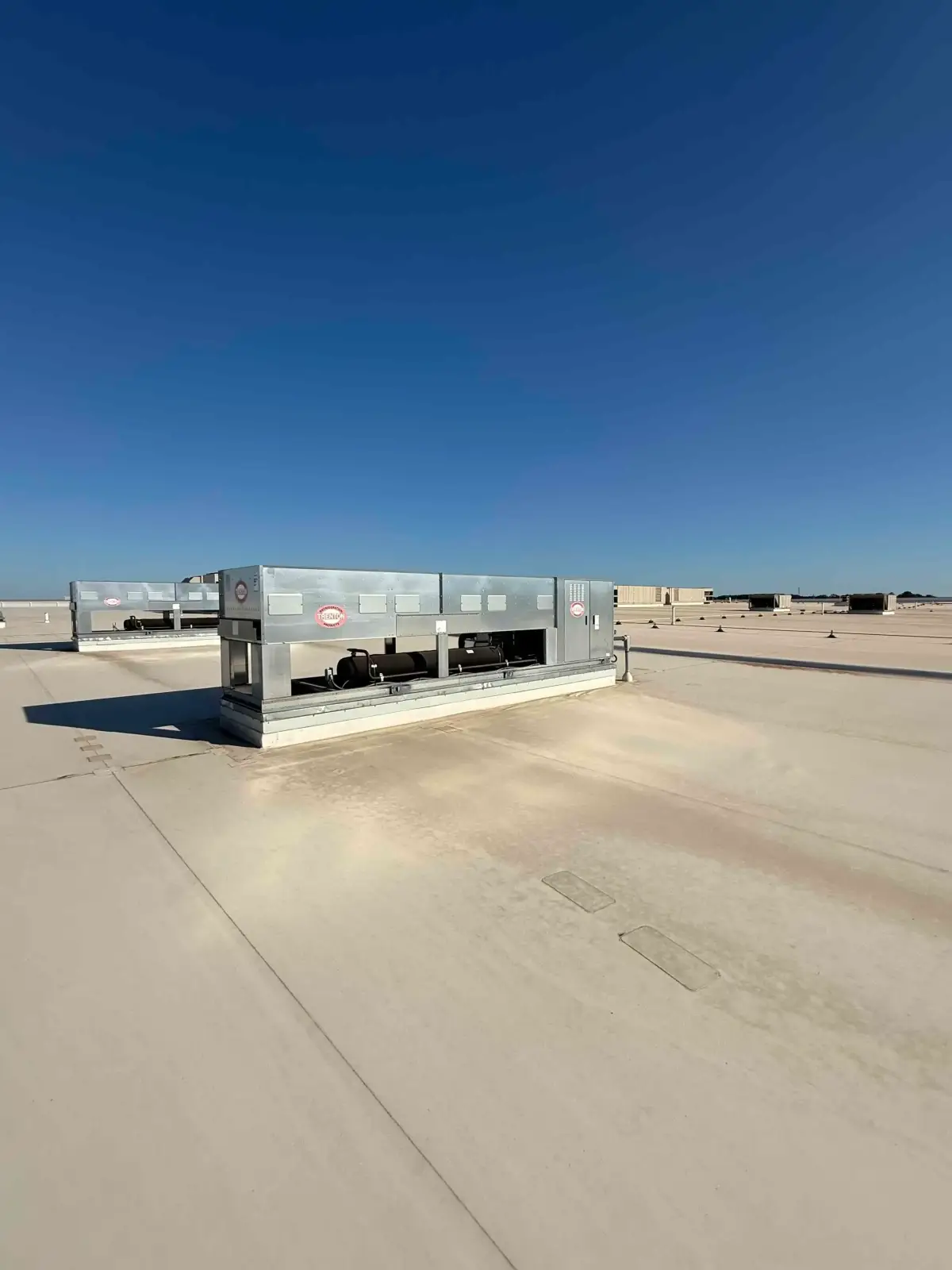

SB6023: RCU-2 – Trenton TVS035M8-HT4B-A3CQ78 Vertical Air-Cooled Condensing Unit, 3.5 HP Copeland Scroll, 460 V 3-Phase (High/Medium Temp)

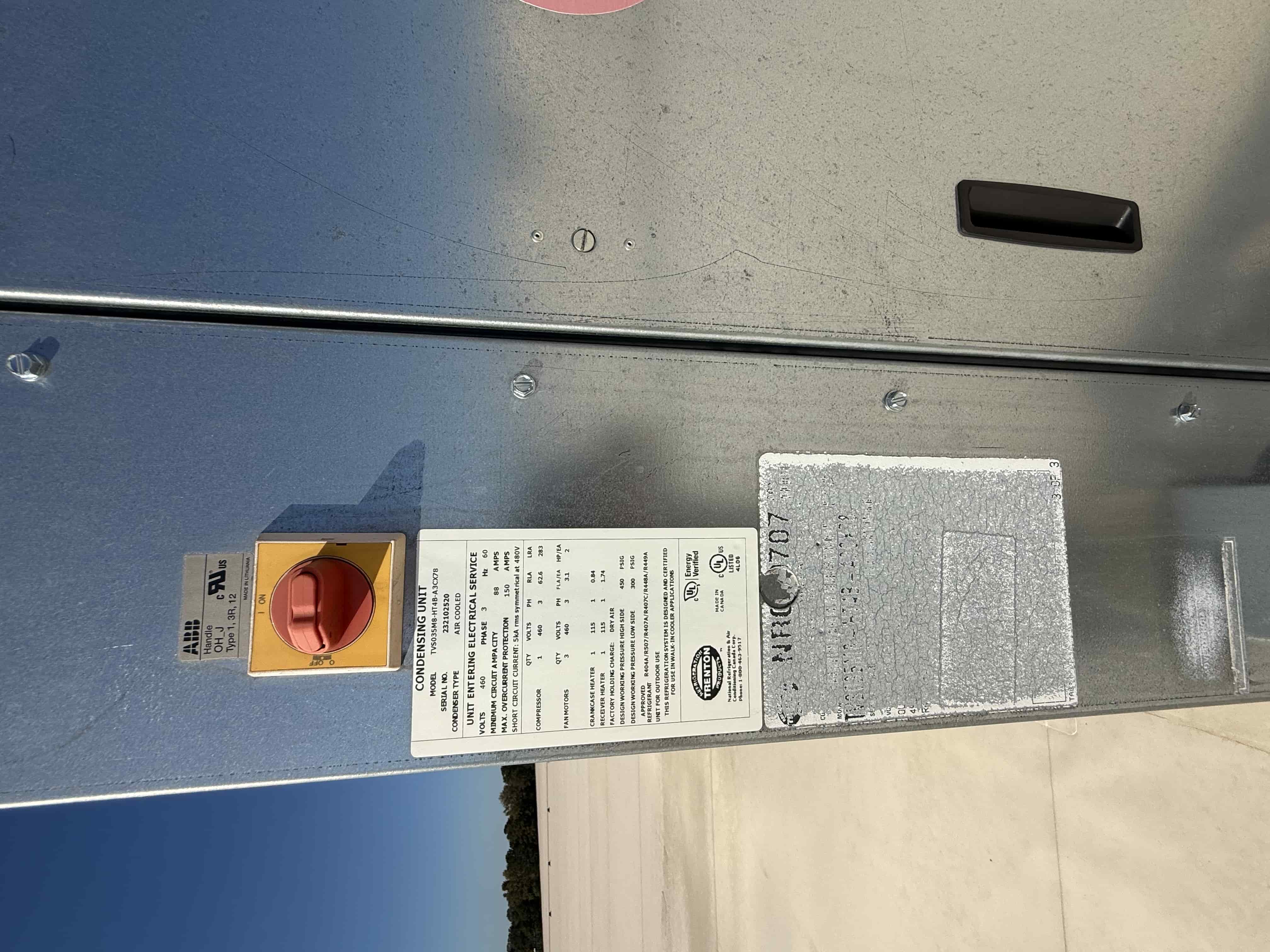

This listing is for RCU-2, a Trenton TVS035M8-HT4B-A3CQ78 vertical air-cooled condensing unit from Trenton’s TVS Series, engineered for dependable, efficient performance in commercial and industrial refrigeration systems. The 3.5 HP Copeland Z-series scroll compressor provides quiet and efficient operation ideal for high- or medium-temperature applications including walk-in coolers, food storage areas, and process refrigeration. The “H8” configuration designates multi-refrigerant flexibility—compatible with R404A, R407A/C, R448A, R449A, and R507—while the “T4” identifies 460 V 3-phase 60 Hz power. Factory specifications (from identical RCU-3 unit nameplate): Model: TVS035M8-HT4B-A3CQ78 Voltage: 460 V, 3-phase, 60 Hz MCA: 14 A | MOCP: 15 A Compressor: Copeland Scroll, 9.1 A RLA, 45 A LRA Fan Motors: 1.4 A each (dual top-discharge fans) Crankcase Heater: 1.6 A @ 460 V Design Pressure: 450 PSIG (high) / 250 PSIG (low) Refrigerant Group: Multi-refrigerant compatible Cabinet: Galvanized steel vertical housing with service access panels Condition: In-place installation; buyer responsible for lockout/tagout, refrigerant recovery, full disconnection, gas-line demo and capping, duct and piping removal, and rigging/removal per site and EPA standards. The TVS035M8 design delivers energy-efficient, compact performance for walk-ins, production spaces, and general-purpose refrigeration environments where reliability and service accessibility are key.
