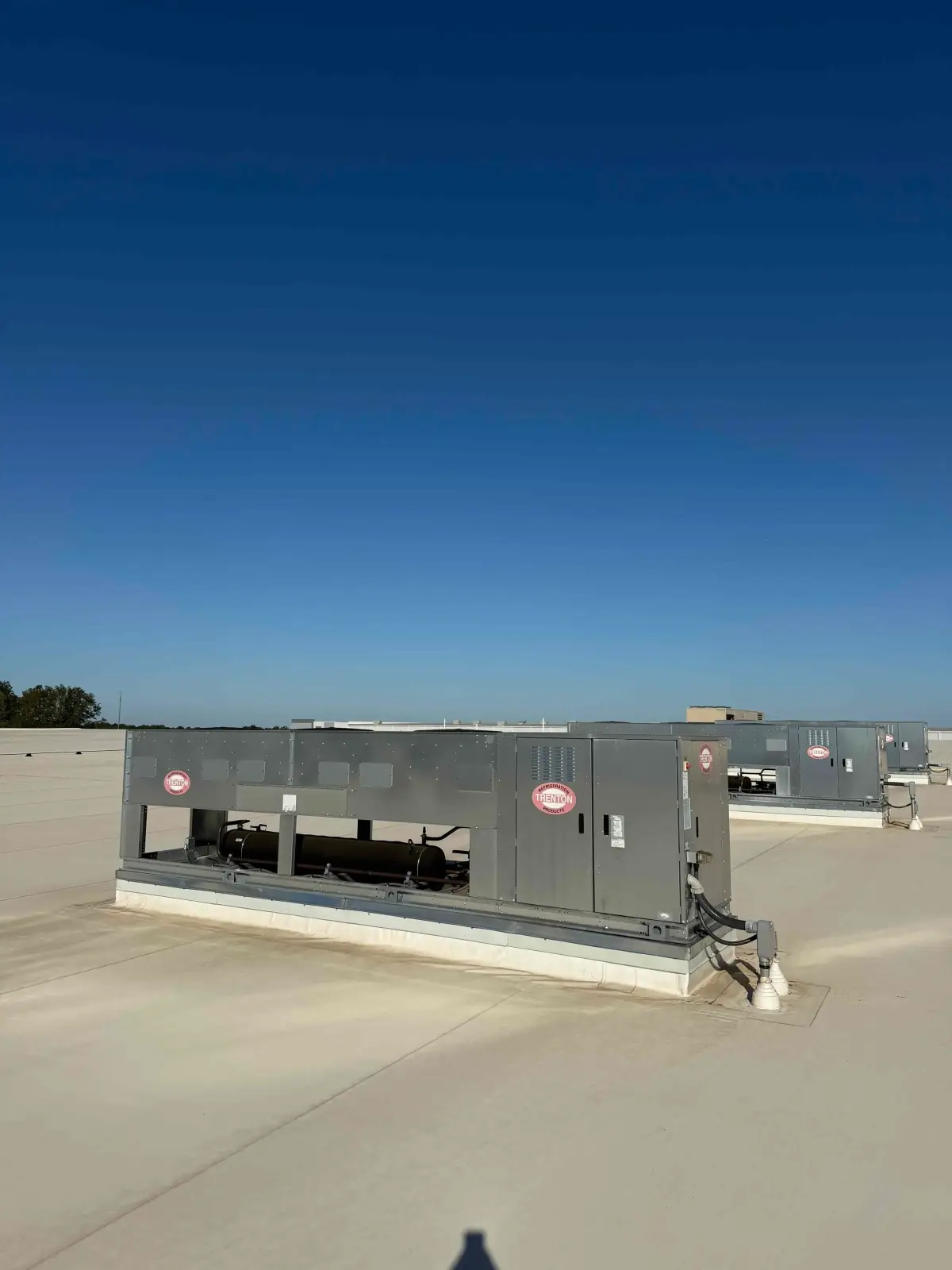

SB6022: RCU-3 – Trenton TVS035M8-HT4B-A3CQ78 Vertical Air-Cooled Condensing Unit, 3.5 HP Copeland Scroll, 460 V 3-Phase (High/Medium Temp)

This listing is for RCU-3, a Trenton TVS035M8-HT4B-A3CQ78 vertical air-cooled condensing unit from Trenton’s TVS line, engineered for energy-efficient performance in commercial and light-industrial refrigeration systems.

The 3.5 HP Copeland Z-series scroll compressor provides quiet, efficient operation for high/medium-temperature applications such as walk-in coolers, food storage, or process-cooling systems. The “H8” configuration designates high/medium-temperature capability with a multi-refrigerant platform, compatible with R404A, R407A/C, R448A, R449A, and R507. The “T4” code specifies 460 V 3-phase 60 Hz electrical service.

Key specifications:

Manufacturer: Trenton Refrigeration

Model: TVS035M8-HT4B-A3CQ78

Compressor: Copeland scroll (Z-series), 3.5 HP

Electrical: 460 V 3-phase 60 Hz

MCA: 14 A | MOCP: 15 A

Compressor RLA: 9.1 A | LRA: 45 A

Fan Motors: (2) × 1.4 A each, top-discharge configuration

Crankcase Heater: 1.6 A @ 460 V

Design Pressure: 450 PSIG (high), 250 PSIG (low)
