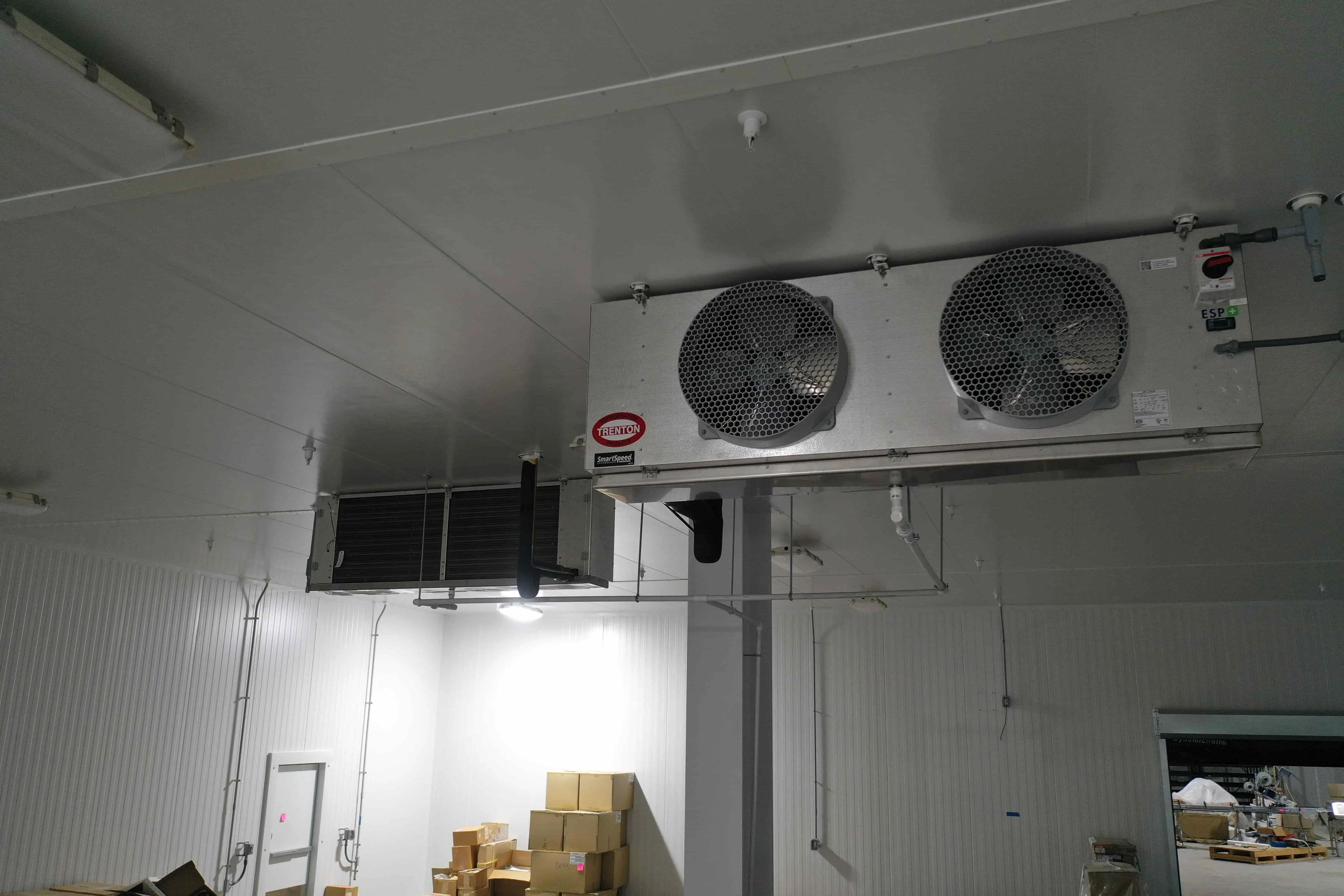

SB6021a: EVAP 5 – Trenton TMP248ME-T4D Medium-Profile Evaporator, Electric Defrost, ≈ 5,700 CFM, 460 V 3-Phase – West-Side Unit in 37 °F Cold Storage (Connected to RCU 5)

This listing covers EVAP 5 – Trenton TMP248ME-T4D, a medium-profile, dual-fan electric-defrost evaporator located on the west side of the 37 °F Cold Storage Room, directly connected to RCU 5. Trenton’s TMP series is engineered for medium-temperature cold rooms and refrigerated warehouses that demand reliability, service accessibility, and uniform airflow. Each TMP248ME-T4D unit incorporates a 6 FPI copper-tube/aluminum-fin coil, factory pressure-tested to 300 PSIG, and two EC SmartSpeed® motors providing high-volume, low-noise performance. The electric-defrost heating elements ensure frost-free operation in +30 °F to +40 °F applications, while the compact medium-profile cabinet saves vertical clearance in lower-ceiling rooms. Verified Specifications (TMP248ME-T4D): Airflow: ≈ 5,730 CFM (dual-fan) Fans: 2 × EC SmartSpeed® motors (high-efficiency, variable-speed) Defrost: Electric (ME configuration) Electrical: 460 V / 3-phase / 60 Hz (T4D) Nominal Capacity: ~38,600 BTU/hr @ 10 °F TD (medium temperature) Refrigerant Compatibility: R404A, R448A, R449A, R407A/C, R507 Connections: Liquid 7/8″ ODF | Suction 1-3/8″ ODF Cabinet: Galvanized steel with hinged access doors and drain pan Dimensions: ≈ 84.25″ W × 20.75″ D × 27.75″ H Approx. Weight: ~270 lb Mounting Location: Ceiling-hung on the west wall of the 37 °F Cold Storage Room Decommissioning Notes: Unit remains installed. Buyer is responsible for full disconnection, gas-line demo and capping, rigging, and removal. Ductwork and associated piping connected to the RTU may be removed. Performance Summary: The EVAP 5 TMP248ME-T4D delivers high airflow and stable, even temperature distribution across the west side of the cold-storage space. When paired with RCU 5, it provides a balanced refrigeration load for medium-temperature product storage, ensuring consistent 37 °F conditions for perishable goods.
