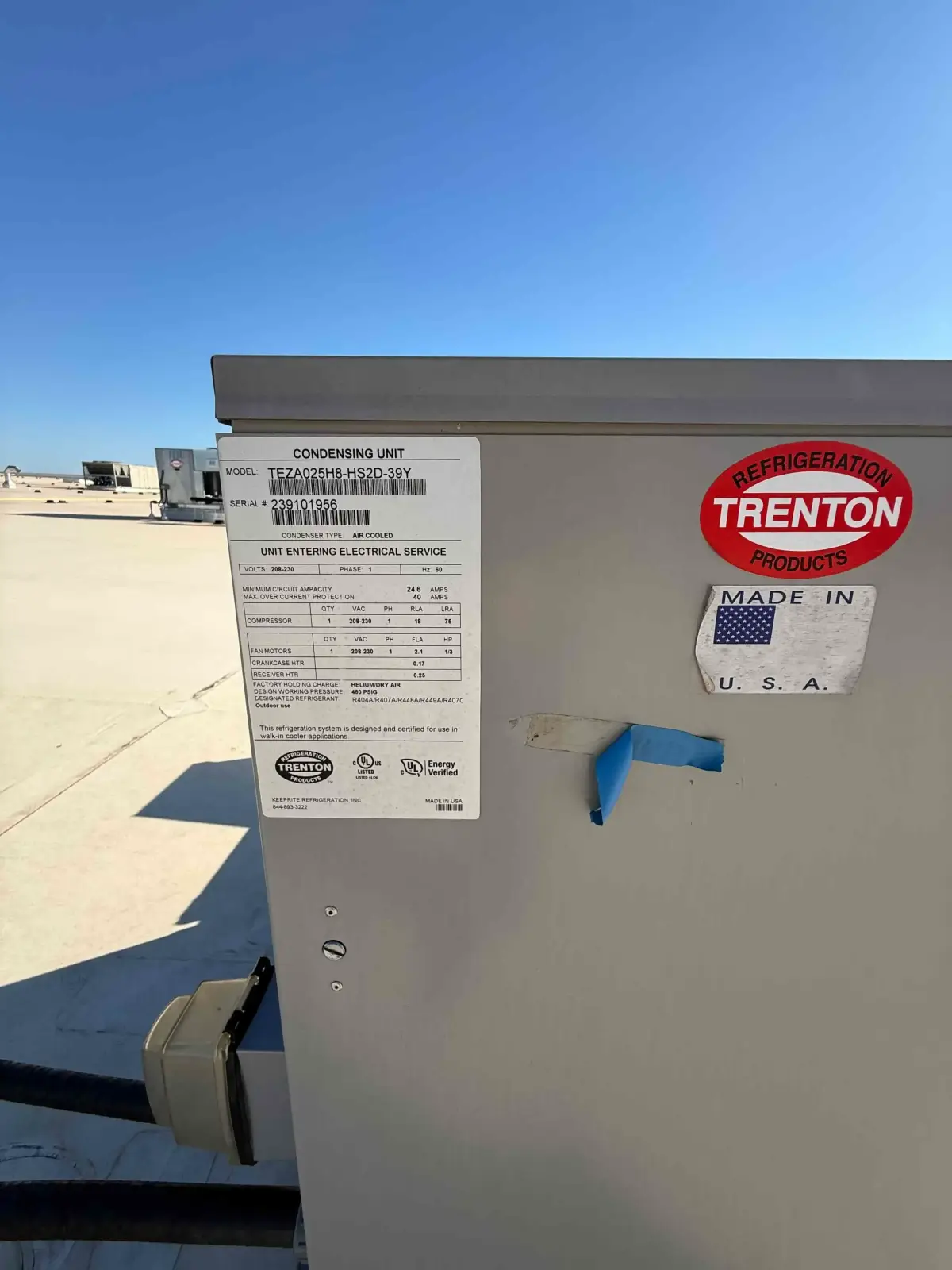

SB6016: RCU-10 – Trenton TEZA025H8-HS2D-39Y, 2.5 HP Outdoor Air-Cooled Condensing Unit, 208-230V 3-Phase (High/Medium Temp, Copeland Semi-Hermetic)

This listing is for RCU-10, a Trenton TEZA025H8-HS2D-39Y air-cooled condensing unit designed for commercial and light-industrial refrigeration systems. The TEZ series uses Copeland Discus® semi-hermetic compressors known for efficiency, long service life, and quiet operation. This model delivers approximately 2.5 horsepower (around 24,000 BTU/hr at +20°F SST using R404A) and supports a broad range of refrigerants—R404A, R507, R407A, R407C, R448A, and R449A—offering flexibility for existing or retrofit installations. It operates on 208-230 volt, 3-phase, 60 Hz power (HS2 code), and the “H8” designation indicates suitability for high and medium temperature applications such as produce coolers, prep areas, floral cases, and other moderate refrigeration loads. The weather-rated outdoor enclosure (“H”) includes service access panels, top-mounted condenser fan(s), and a powder-coated steel frame for durability in exposed environments. Key specifications: Compressor: 2.5 HP Copeland semi-hermetic Discus® (R404A/R407A/C/R507/R448A/R449A compatible) Application: High/medium temperature refrigeration (approx. +20 °F SST) Electrical: 208-230 V, 3-phase, 60 Hz Refrigerant group: “8” multi-gas configuration Enclosure: Outdoor, weather-protected housing with removable service panels Suction line: ~7/8 in. ODF | Liquid line: ~3/8 in. ODF (verify per nameplate) Estimated capacity: ~24,000 BTU/hr @ +20 °F SST, 100 °F ambient (R404A) Approx. dimensions: 45″ L × 30″ D × 38″ H Condition: In-place installation; buyer responsible for lockout/tagout, refrigerant recovery, full disconnection, gas-line demo and capping, duct and piping removal, and rigging/removal per site and EPA standards. Trenton’s TEZ series is widely used in grocery, restaurant, and warehouse applications and is recognized for long service intervals and robust performance in continuous-duty conditions.
