SB6014a: EVAP 8 – Trenton TMP120MA-32D Medium-Profile Evaporator, Air Defrost, 1 Fan (~3 030 CFM, 37 °F Room), 460 V 3-Phase – Connected to RCU 9 in 55 °F Chilled Storage

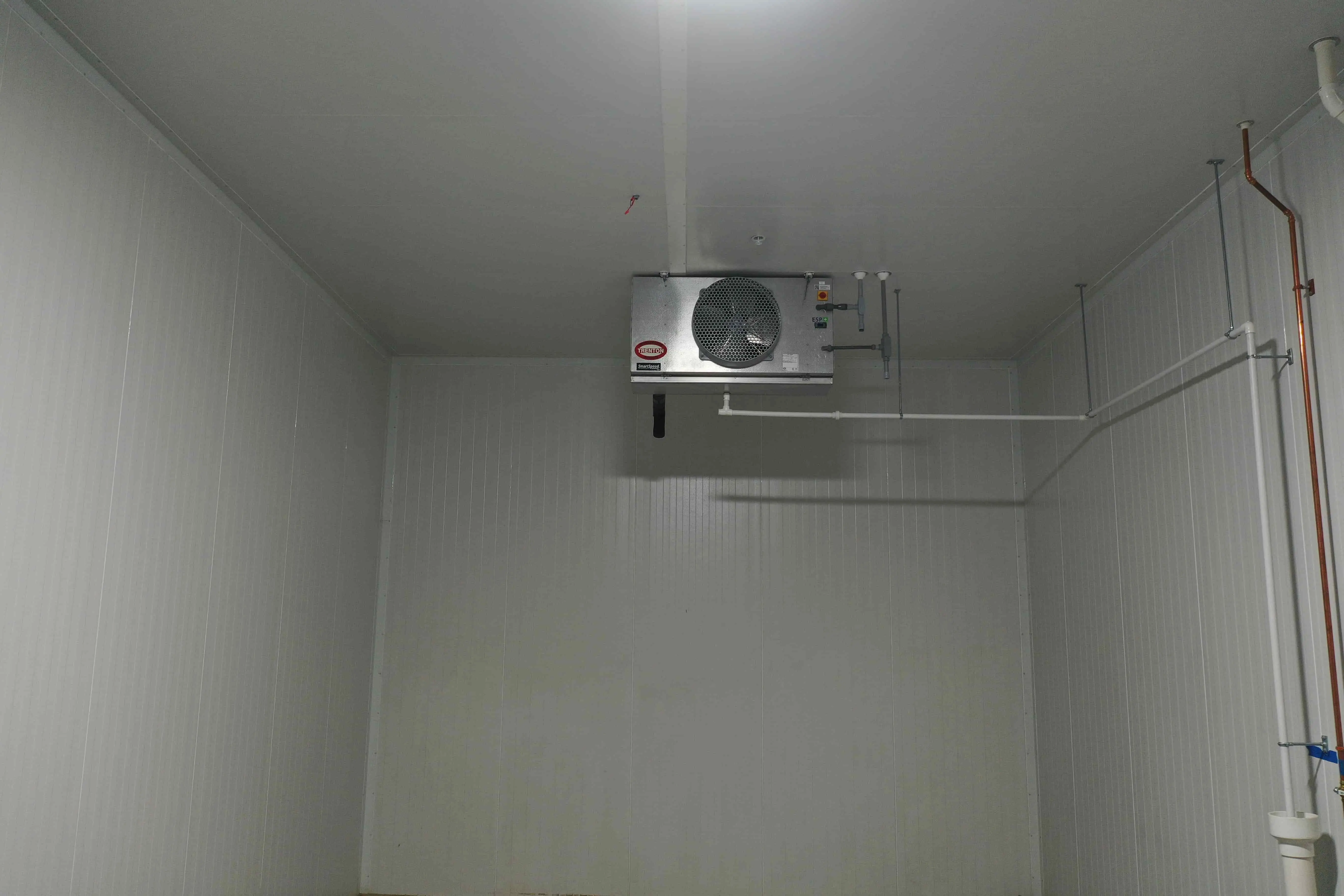

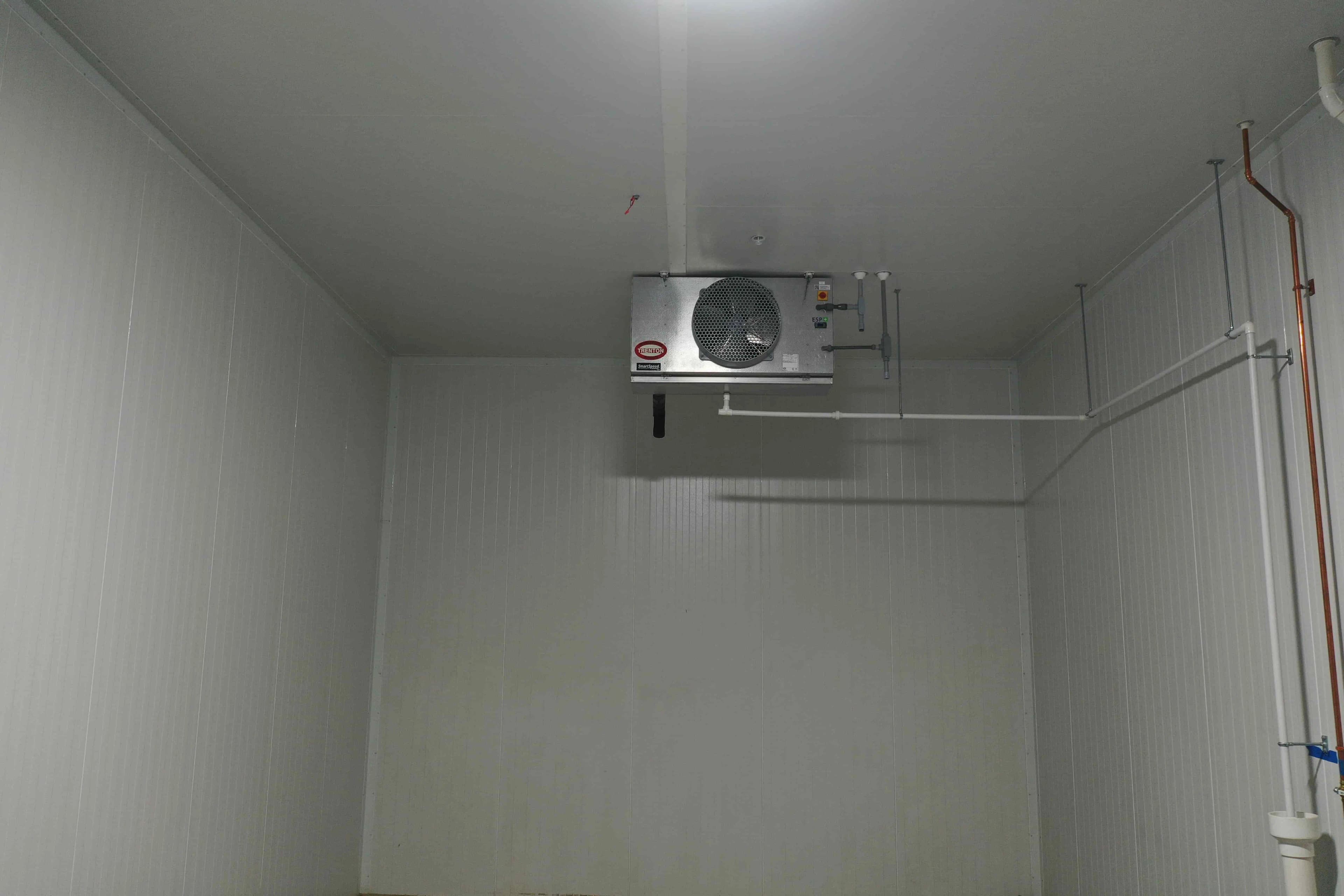

This listing covers EVAP 8 – Trenton TMP120MA-32D, a single-fan, medium-profile, air-defrost evaporator located in the 55 °F Chilled Storage Room, paired with RCU 9 on the rooftop.

The TMP series from Trenton Refrigeration is designed for medium-temperature cold-room and storage applications where reliability, airflow balance, and compact ceiling installation are required.

The TMP120MA-32D model uses a single axial fan producing ≈ 3 030 CFM, draws ≈ 2.2 total fan amps, and provides a 13.5 °F temperature difference (TD) under standard conditions.

The “M” designates a medium-temperature coil (approx. +25 °F SST), the “A” suffix indicates air defrost, and the “32D” indicates a 460 V 3-phase 60 Hz motor configuration.

Technical Highlights (verified TMP series)

Manufacturer: Trenton Refrigeration

Model: TMP120MA-32D

Connection: Linked to RCU 9 (Rooftop Condensing Unit)

Airflow: ≈ 3 030 CFM (single axial fan)

Fan Motor Load: ≈ 2.2 A @ 460 V 3-phase

Cooling Capacity: ~12 000–13 500 BTU/hr (@ 13.5 °F TD, medium temp)

Defrost Type: Air defrost (A suffix)
