SB41 – Ever-Kleen / Tri-Mach Stainless Food-Grade Conveyor System with Keltech Drive (Model K63R45-ZOWB3-W), 1 HP 1750 RPM Motor, 45:1 Ratio Gearmotor, NSF H1 Mobil SHC Cibus 320 Oil, with Leviton PowerSwitch Disconnect (Label 0104) – Located in Tray Washing Room

Lot SB41 includes one Ever-Kleen / Tri-Mach sanitary conveyor system driven by a Keltech K63R45-ZOWB3-W gearmotor assembly.

This conveyor is installed in the Tray Washing Room, supporting the Koppert and Limex tray and raft washing lines as part of a fully integrated cleaning and handling process.

The Ever-Kleen series by Tri-Mach Group represents an industry benchmark for hygienic design, featuring fully open-frame 304 stainless construction, sloped surfaces for drainage, and quick-release components for rapid wash-down.

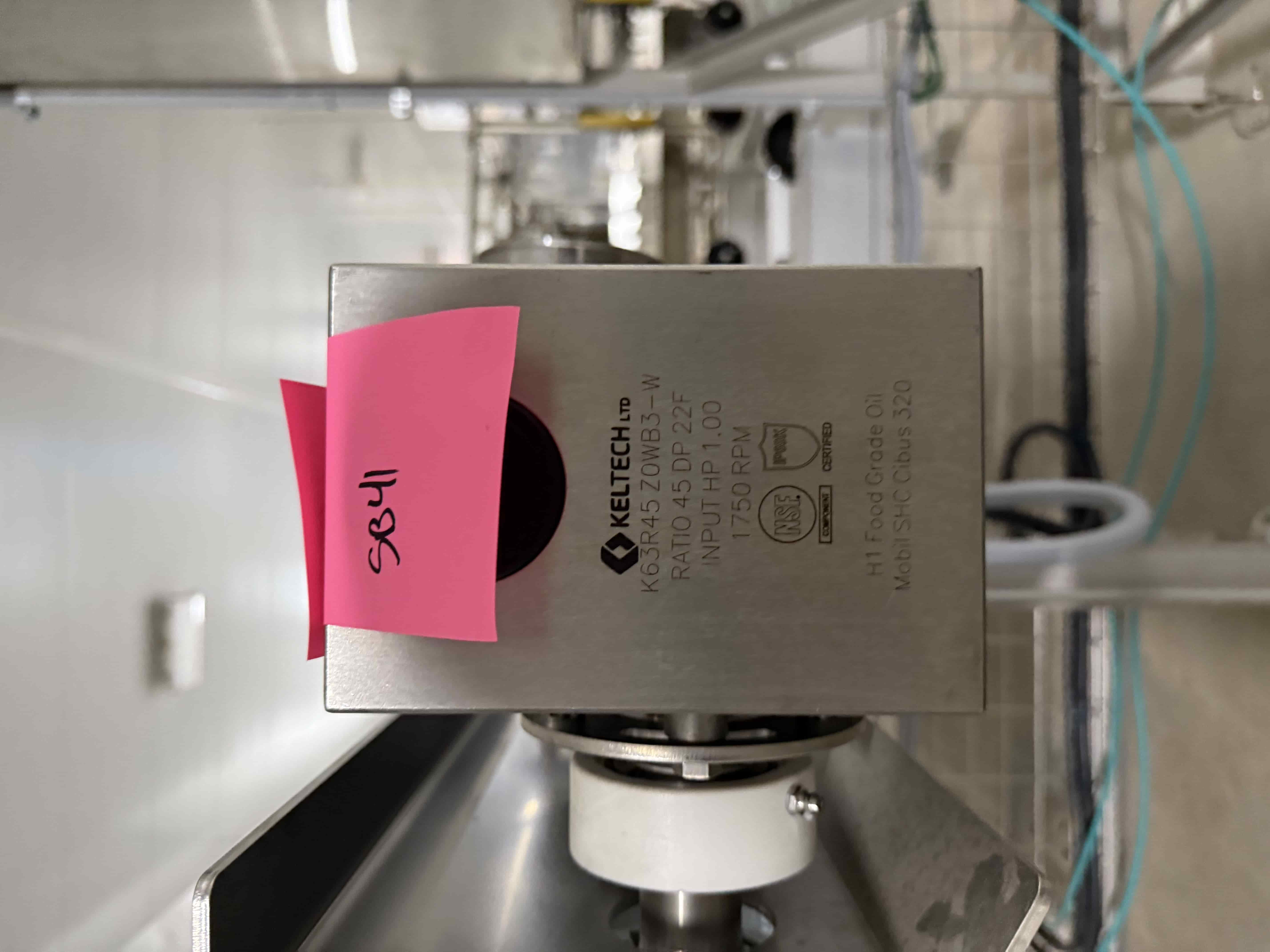

The system’s Keltech drive motor operates at 1 HP, 1750 RPM with a 45:1 gearbox ratio to deliver smooth, controlled conveying speed ideal for handling cleaned trays, bins, or rafts between wash and staging areas.

The gearbox is factory-filled with Mobil SHC Cibus 320, a synthetic NSF H1 food-grade lubricant rated for incidental food or plant contact.

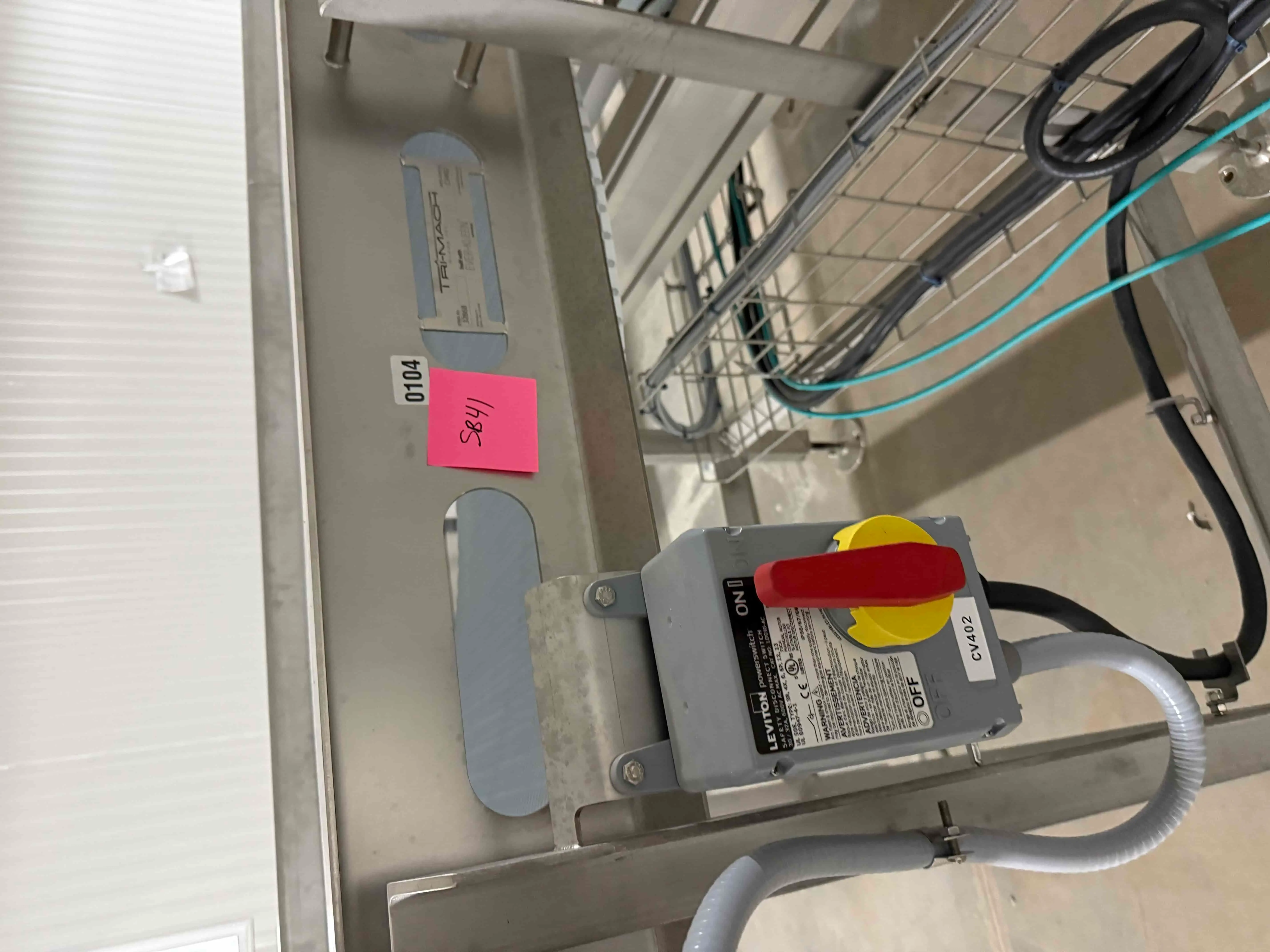

A Leviton PowerSwitch safety disconnect (Label 0104) is mounted at the conveyor frame, providing OSHA-compliant isolation for servicing or lockout/tagout.

Technical Specifications

Manufacturer: Tri-Mach Group

Series: Ever-Kleen Sanitary Conveyor System

Drive Manufacturer: Keltech

Model: K63R45-ZOWB3-W

Motor Power: 1 HP (0.75 kW)

Speed: 1750 RPM (input)

Gear Ratio: 45:1

Lubrication: Mobil SHC Cibus 320 – NSF H1 food-grade oil

Orientation: Right-angle gearmotor drive

Electrical: 480 V / 3-phase (verify from plate)

Construction: 304 stainless steel, wash-down rated

Safety Equipment: Leviton PowerSwitch disconnect, lockable for maintenance safety (Label 0104)

Approx. Condition: Excellent; installed and operational within Tray Washing Room

Location: Tray Washing Room – part of integrated Koppert and Limex tray washing and drying line
