SB224: AirSep Dual Vertical Compressed Air Receiver Tanks – Samuel Pressure Vessel Group (200 PSI, 200-Gallon Each, ASME Certified)

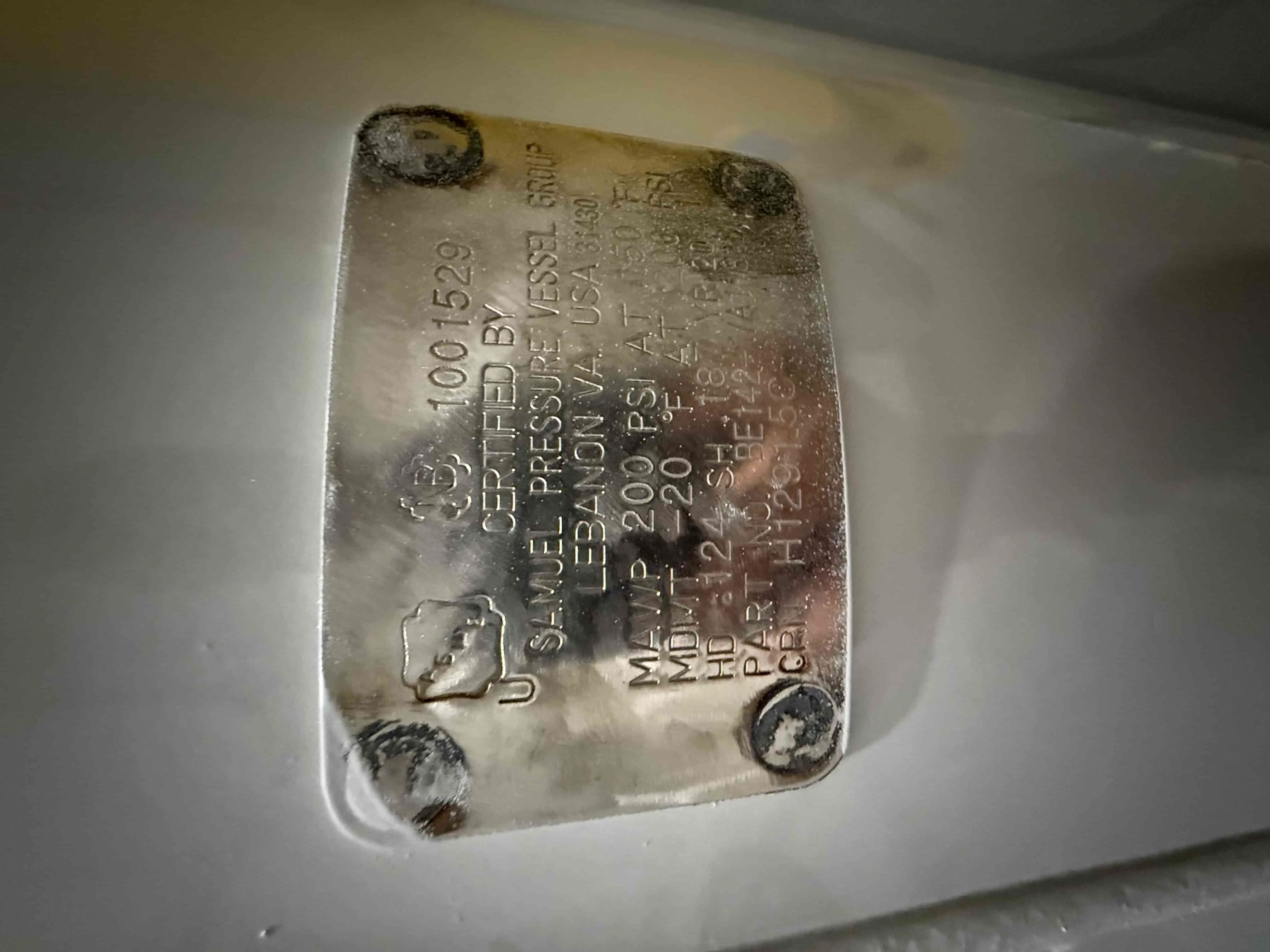

Offered is Lot SB224, a matched set of two (2) AirSep vertical compressed air receiver tanks built by Samuel Pressure Vessel Group (Lebanon, VA). These ASME-rated steel vessels are rated for 200 PSI maximum allowable working pressure (MAWP) and were installed as part of Bowery Farming’s compressed air system supporting the pneumatic irrigation, filtration, and automation network (see Lots SB221–SB222). The tanks are mounted side-by-side on a shared steel base and painted in industrial gray enamel. Each vessel includes top and bottom ports for inlet/outlet service, drain connections, and lifting lugs for installation. Key Technical Details: Manufacturer: Samuel Pressure Vessel Group – Lebanon, VA Model / Part Number: BE142 / H129L5C Branding: AirSep Serial Number: 1001529 (representative) Type: Dual Vertical Air Receiver Tanks (ASME Certified) Orientation: Vertical Construction: Welded carbon steel with reinforced shell Finish: Industrial gray enamel Mounting: Shared steel base skid Pressure Rating: MAWP: 200 PSI @ 450°F MDMT: -20°F @ 450 PSI Dimensions (each): Approx. 24" dia. × 84" H (estimated) Capacity: ~200 gallons per tank (400 gallons combined) Use Case: Compressed air storage and regulation for pneumatic valve networks Buffering system for Kaeser and H2O Engineering air compressors (SB221/SB222) Condition: Structurally sound, clean exterior finish, no visible corrosion or mechanical damage. Condition: In-place installation. Buyer responsible for depressurization, line disconnection, and safe rigging/removal per ASME and OSHA safety standards.
