HortiMax CP-MOD KD1825_67 EC2_pH2 Greenhouse Fertigation Measuring Module | Chesterton, IN

HORTIMAX CP-MOD KD1825_67 EC2_pH2 - GREENHOUSE FERTIGATION MEASURING MODULE

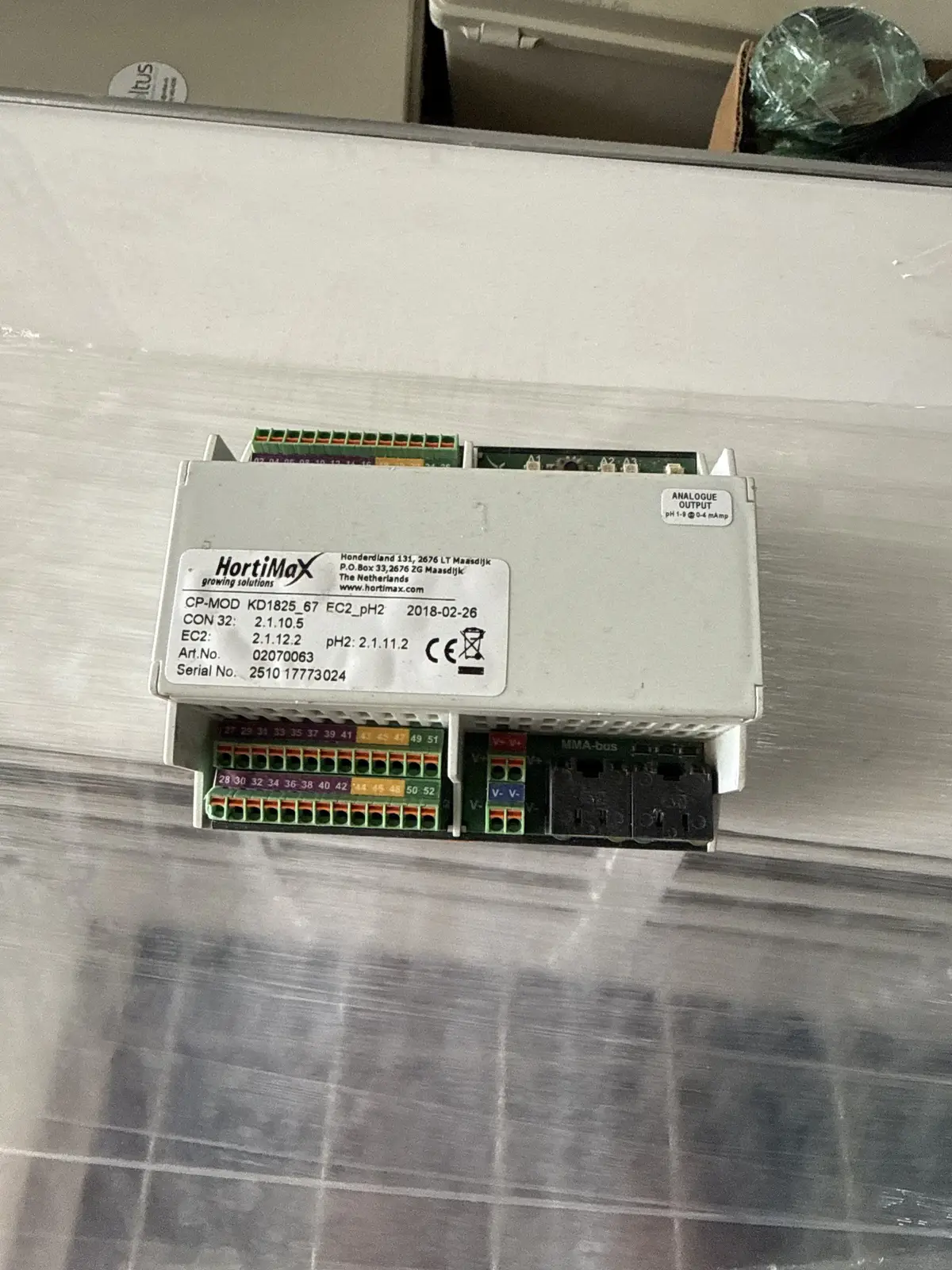

The EC and pH measuring module out of a HortiMax fertigation control cabinet. This is the card that reads the nutrient solution and hands the values to the controller - two EC channels and two pH channels on one DIN-rail module.

SPECIFICATIONS (from the module label)

- Manufacturer: HortiMax (growing solutions), Honderdland 131, 2676 LT Maasdijk, The Netherlands (now part of Ridder)

- Type: CP-MOD KD1825_67 EC2_pH2

- CON 32 firmware: 2.1.10.5

- EC2 firmware: 2.1.12.2

- pH2 firmware: 2.1.11.2

- Art. No.: 02070063

- Serial No.: 2510 17773024

- Date code: 2018-02-26

- Analogue output: pH 1-9 at 0-4 mA (per the side label)

- Bus: MMA-bus, two RJ-style bus ports

- Power: V+ / V- pluggable terminals

- I/O: pluggable green screw terminals, positions 02-26 and 27-52, with color-coded channel groups

- Mounting: DIN rail with orange release clips

- CE marked, WEEE marked

WHO BUYS THIS

Commercial greenhouse and CEA operators running HortiMax or Ridder fertigation systems, greenhouse controls integrators, and anyone holding a HortiMax cabinet who needs a spare EC/pH card. Modules like this are usually the failure point in an aging fertigation panel, and a spare on the shelf is the difference between a two-hour swap and a two-week outage.

CONDITION - PLEASE READ

Used, removed from a working fertigation cabinet. Housing shows dust, light scuffing and handling marks; the DIN-rail foot and orange clips are intact and all pluggable terminal blocks are present as pictured. NOT powered up, bus tested or calibrated by SecondBloom - channel function, firmware state and any stored configuration are unverified. EC and pH probes, bus cabling, power supply, backplane and controller are NOT included. Sold as-is with no warranty and no representation of working order.

COMPATIBILITY NOTE

CP-MOD modules are specific to the HortiMax/Ridder platform and firmware generation. Confirm this part number and firmware level suit your cabinet before bidding.

VALUE REFERENCE

Comparable Ridder/HortiMax CP-MOD KD1825 series modules list around $200 new.

LOGISTICS

FOB Chesterton, Indiana 46304. Shipping is NOT included and is not offered through the platform for this lot. Buyer is responsible for pickup or for arranging and paying their own carrier.

Sold as-is, where-is. Questions or to schedule an inspection, contact SecondBloom Auctions at info@secondbloomauctions.com or (312) 497-6522.
