AEROFARMS LOT 18 - Aerofarms Grow Towers Small Pumps

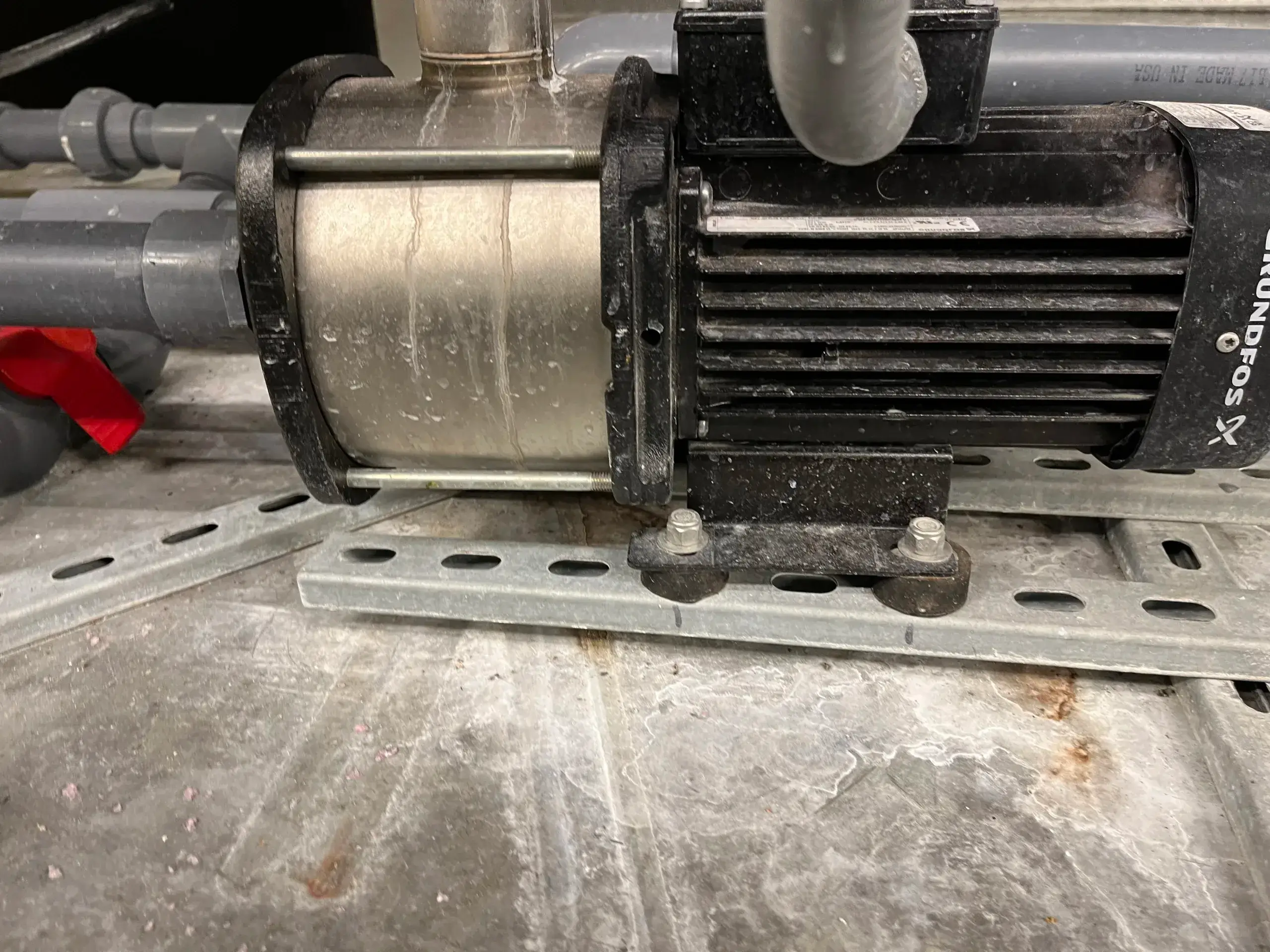

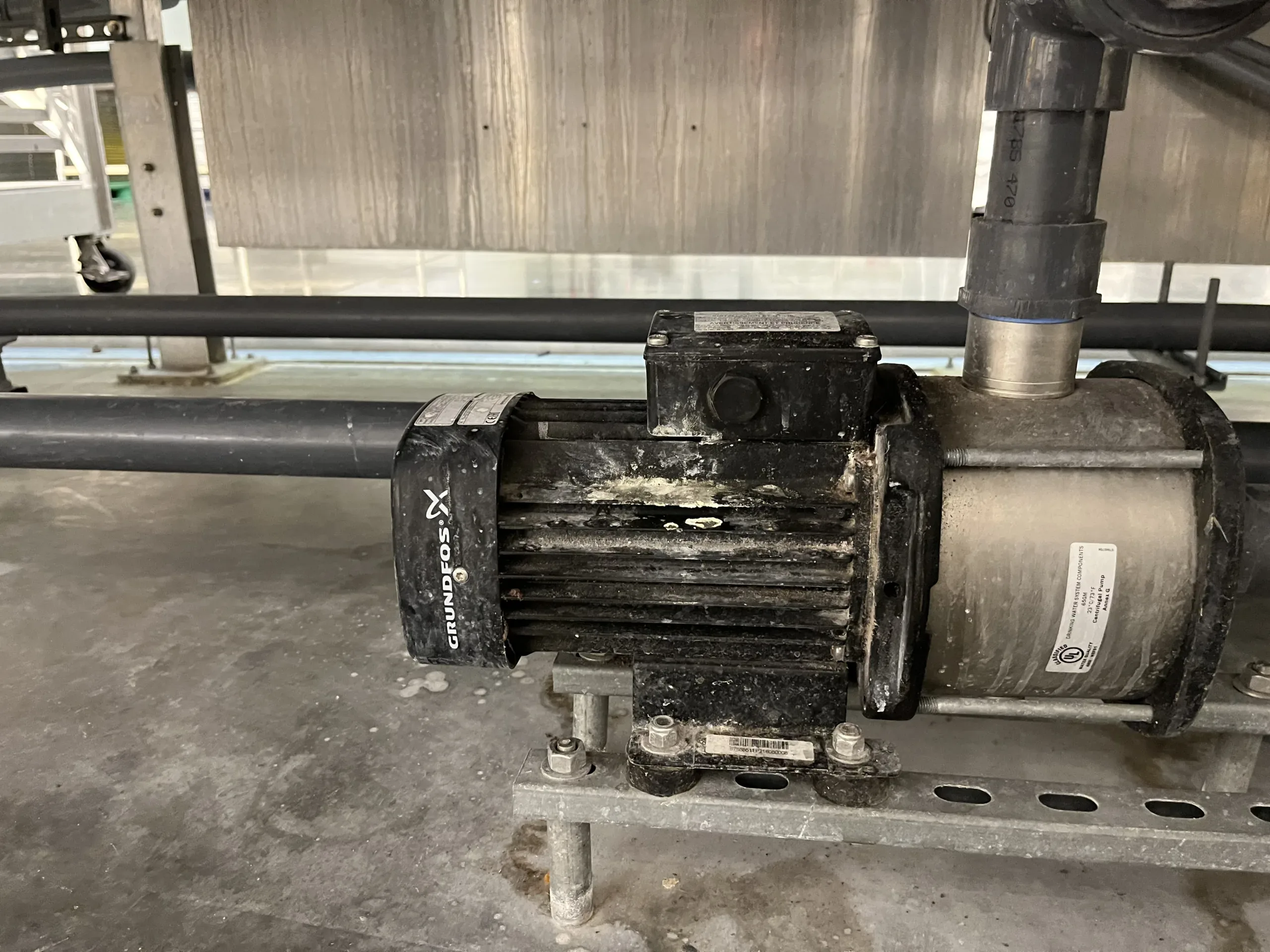

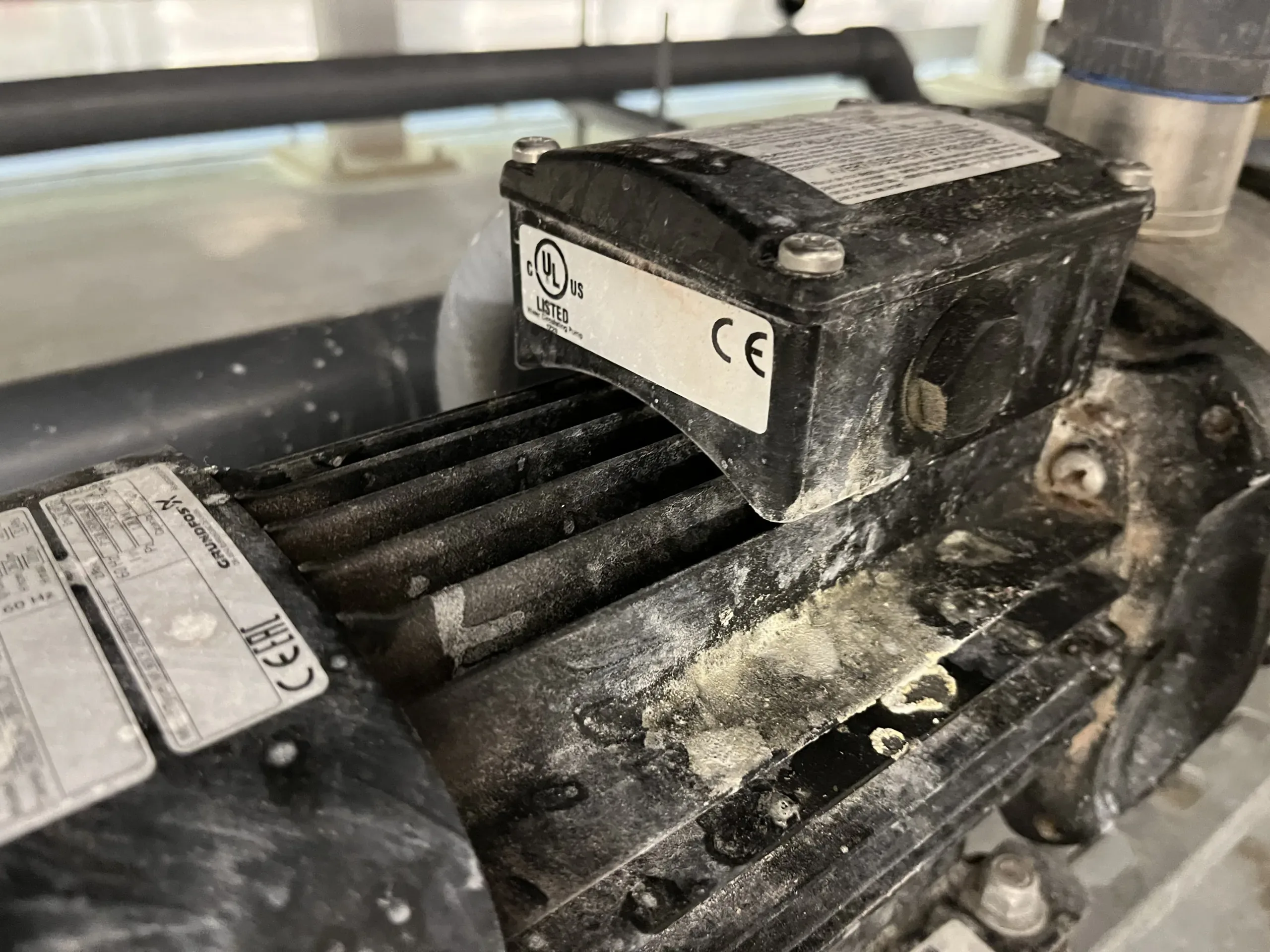

The CM 10-1 A-S-A-E-AQQE E-A-A-N, item number 99087480, is a compact, reliable, and quiet horizontal end-suction centrifugal pump designed for a variety of applications including water treatment, fertigation, chemigation, dosing, and irrigation. It is particularly suitable for drip, micro spray, and soaker hose irrigation systems. The pump features a cast iron pump housing (EN-GJL-200, ASTM A48-25A), stainless steel impeller (EN 1.4301, AISI 304), axial suction port, and radial discharge port. The mechanical shaft seal is a specially designed unbalanced O-ring seal (AQQE) and the pipework connection is via internal NPT (F) pipe threads. The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor with a rated power of 1.48 HP, main frequency of 60 Hz, and a rated voltage of 3 x 208-230YY/440-480Y V. Technical Specifications:

• Pump speed: 3480 rpm
• Rated flow: 52.8 US gpm
• Rated head: 64.6 ft
• Maximum operating pressure: 145.04 psi
• Maximum pressure at stated temperature: 145 psi / 194 F
• Liquid temperature range: -4 .. 194 F
• Selected liquid temperature: 68 F
• Density: 62.29 lb/ft
• Motor standard: NEMA
• Frame size: 80CB
• IE efficiency class: IE3 / NEMA Premium
• Service factor: 1.00
• Rated current: 5.2-5.1/2.55-2.65 A
• Rated speed: 3430-3470 rpm
• Enclosure class (IEC 34-5): IP55
• Insulation class (IEC 85): F
• Cable included: No
• Frequency converter: None
• Terminal box position: 12
• Minimum efficiency index, MEI : 0.7
• Net weight: 51.2 lb
• Gross weight: 56.7 lb
• Country of origin: US
• Custom tariff no.: 8413.70.2040

Approvals:

• CE, EAC, CURUS, UKCA
• Approvals for drinking water: WRAS, ACS, NSF61
• Curve tolerance: ISO9906:2012 3B

Auction Notes:

1. Please be aware that this is a used item, and it is being sold as-is. As such, no warranty is provided with the purchase.
2. The auction items are available for pickup from 212 Rome St. in Newark, NJ Shipping or delivery services are not available for this item.
3. The deadline for item removal is 5pm September 28th. Successful bidders must ensure timely pickup within the specified period. There is no way to extend this date.
4. To get a closer look at this item, schedule an onsite viewing by filling out the form below. Onsite viewings for larger items by qualified bidders are available by appointment only, allowing interested bidders to inspect the item's condition firsthand.
5. All bidders are encouraged to carefully review the product description, specifications, and images provided in the auction listing to make informed bidding decisions.
6. Bidders must be aware of the item's size and weight and arrange appropriate transportation and equipment for safe item removal.
7. Any rigging, dismantling, or removal of the item must be conducted safely and professionally by the winning bidder or their authorized representatives. Any damage to interior or exterior walls, pillars or ceilings must be repaired to AeroFarms satisfaction.
8. Aerofarms will not be responsible for any accidents, damages, or injuries that may occur during item removal or transportation.
9. All sales are final as of the close of each lotsbidding.
10. By participating in this auction, bidders acknowledge that they have read and understood SecondBloom Auction's terms and agree to abide by them throughout the bidding and item removal process.
11. Payment Options: At the completion of the auction, bidders can opt to pay via credit card (please note a 3% convenience fee will be applied at checkout). Alternatively, payment can also be made via wire transfer. The wire transfer details will be displayed exclusively to the winning bidder. Please be informed that items cannot be picked up until the wire transfer is fully processed and confirmed.
