Trane Series R air-cooled chiller system rated at approximately 300 tons, offered with associated chilled water pump and Eaton VFD control panel. Previously installed and connected as part of a functioning central cooling system.
This package provides a complete chilled water production and circulation solution, suitable for industrial, greenhouse, data center, or process cooling applications.
---
Included Equipment

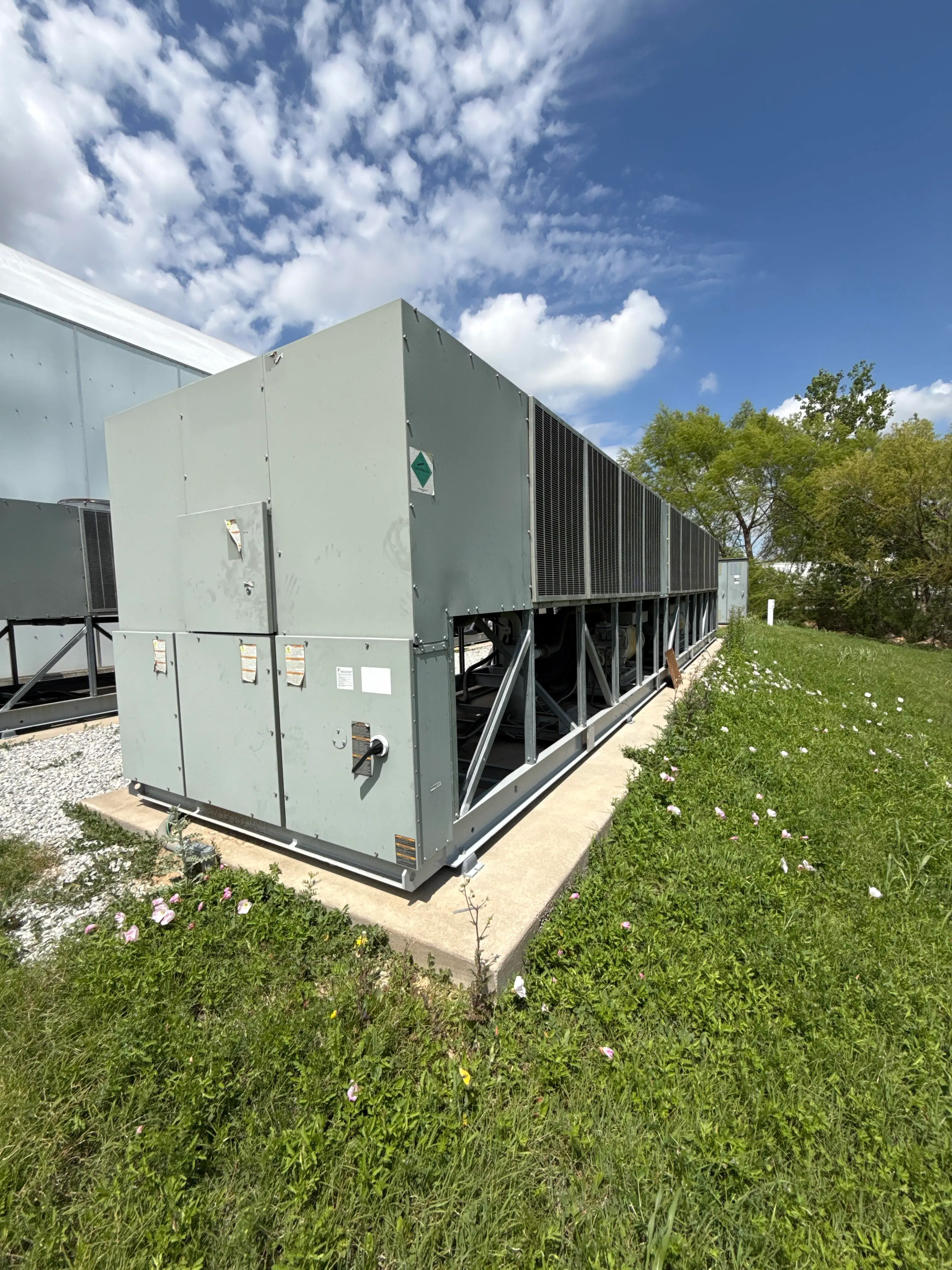

1. Trane Series R Air-Cooled Chiller

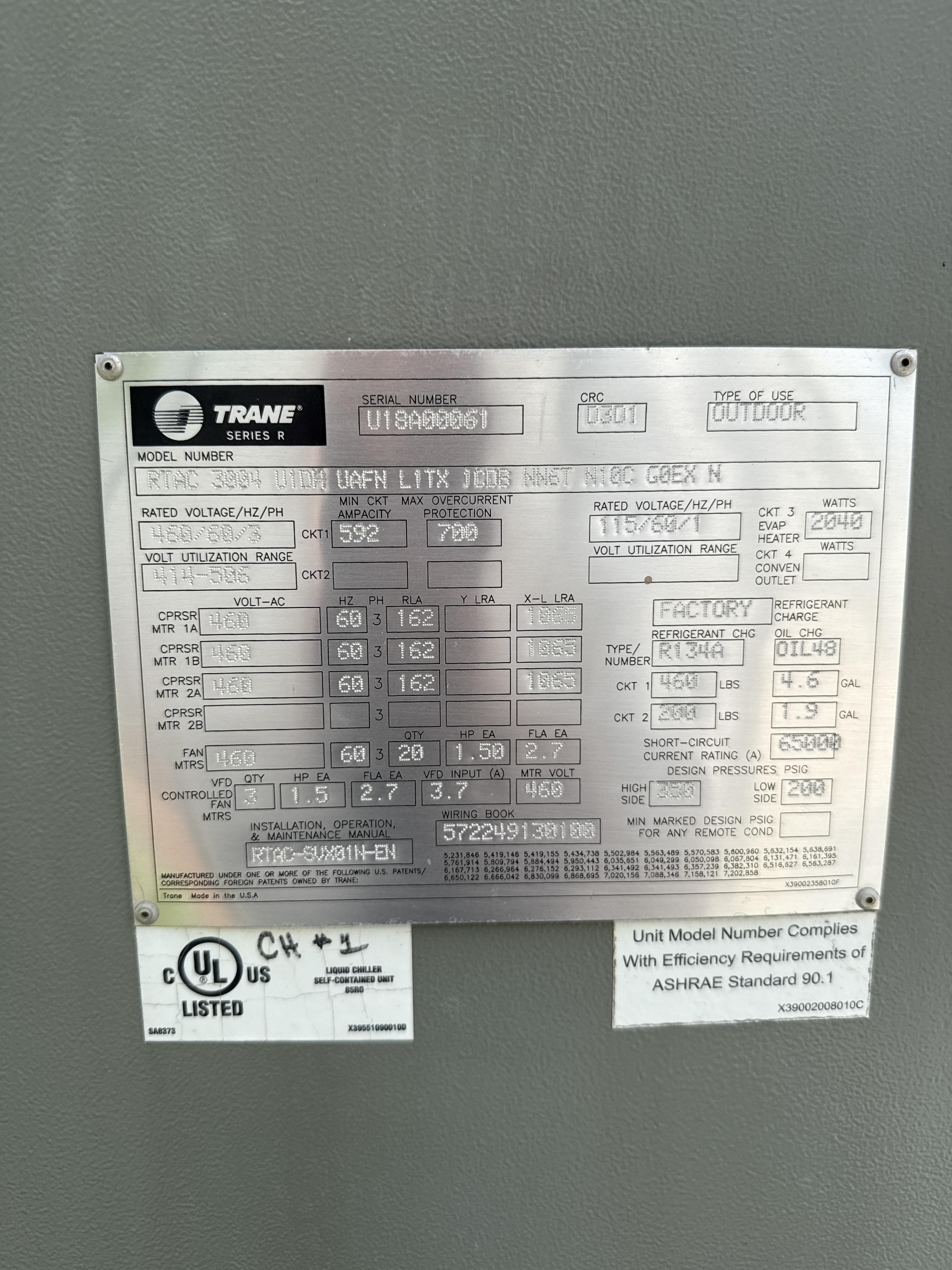

- Model: RTAC3004U1DHL1TX1CDBNN6TN10CG0EXN
- Capacity: 300 Ton (confirmed by model)
- Refrigerant: R134a
- Voltage: 460V / 3-phase
- Screw compressor configuration
- Multi-fan condenser array (~20 fans)
- Outdoor-rated unit
---

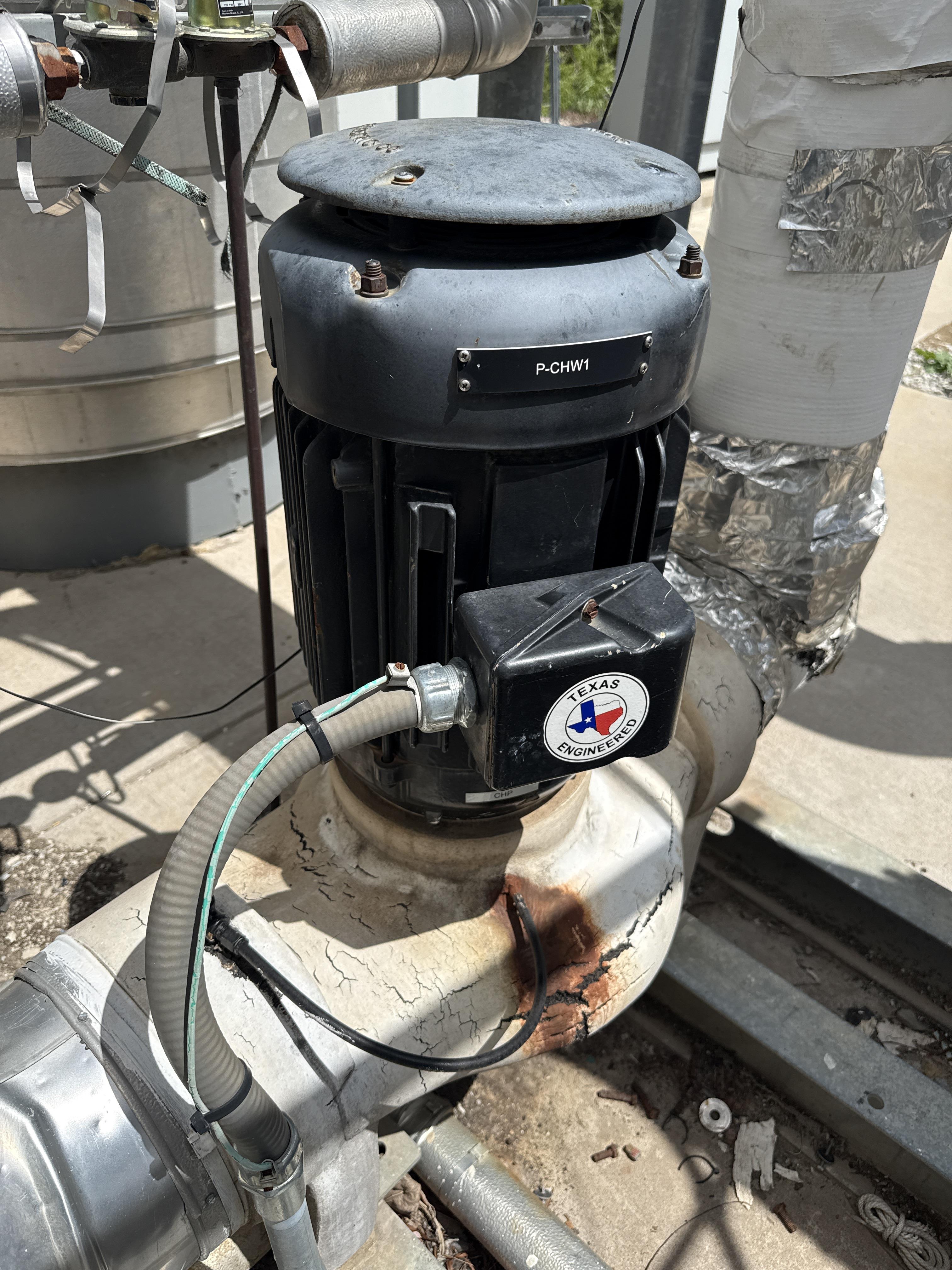

2. Chilled Water Pump Assembly
- Vertical inline centrifugal pump (as shown)
- Industrial-duty motor
- Mounted and piped for chilled water circulation
- Labeled P-CHW1
---

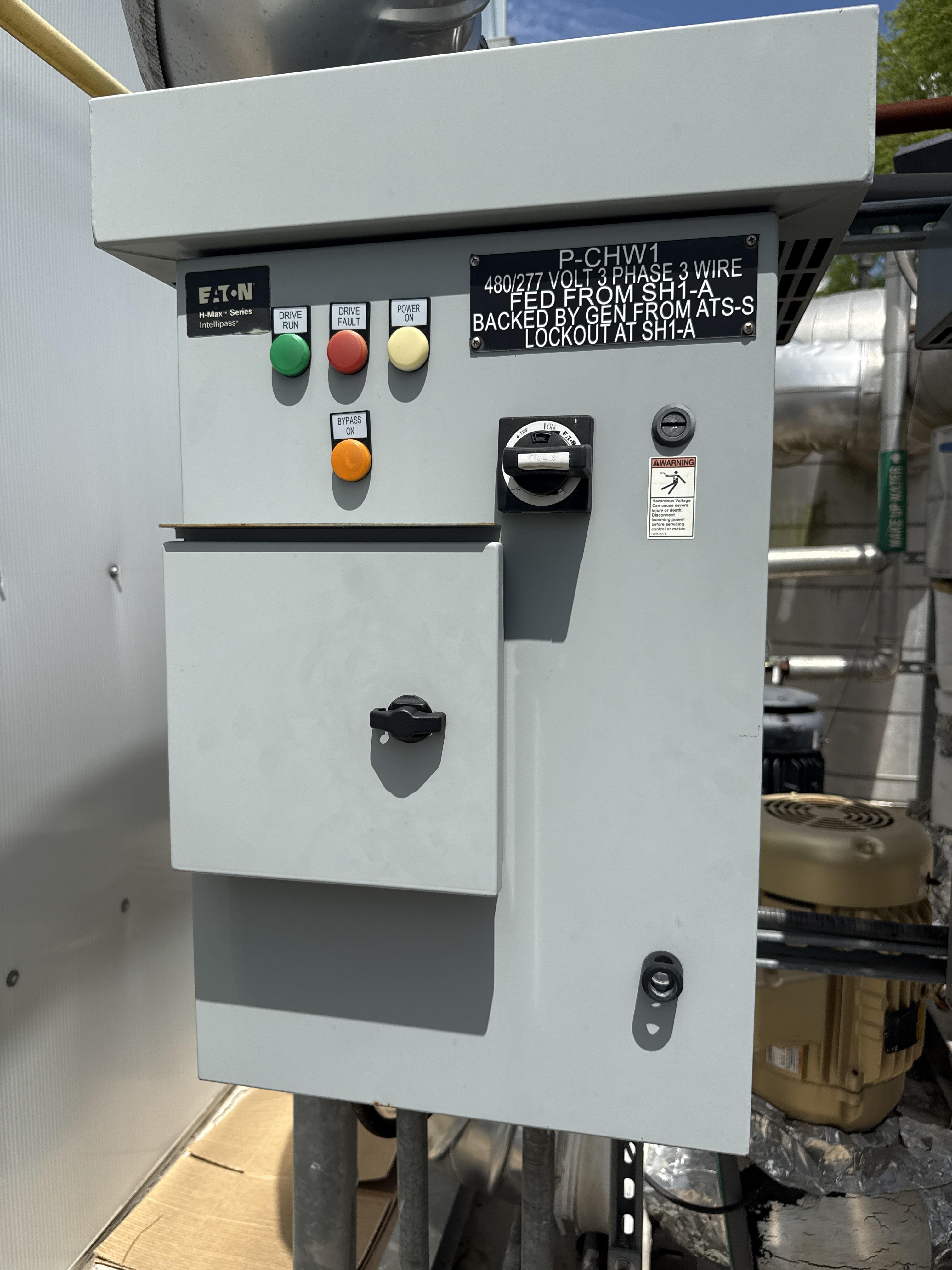

3. Eaton VFD Control Panel
- Eaton H-Max Series Intellipass
- Panel ID: P-CHW1
- 480/277V, 3-phase
- Includes: Drive run / fault indicators
- Bypass function
- Speed control dial
- Designed to control pump operation and flow rate
---
⚙️ System Function
- Chiller produces chilled water
- Pump circulates chilled water through facility
- VFD panel controls flow and system efficiency
This is a matched system setup, not loose equipment.
---
Condition
Used. Installed outdoors.
Not independently tested.
Reported operational by facility personnel prior to shutdown.
