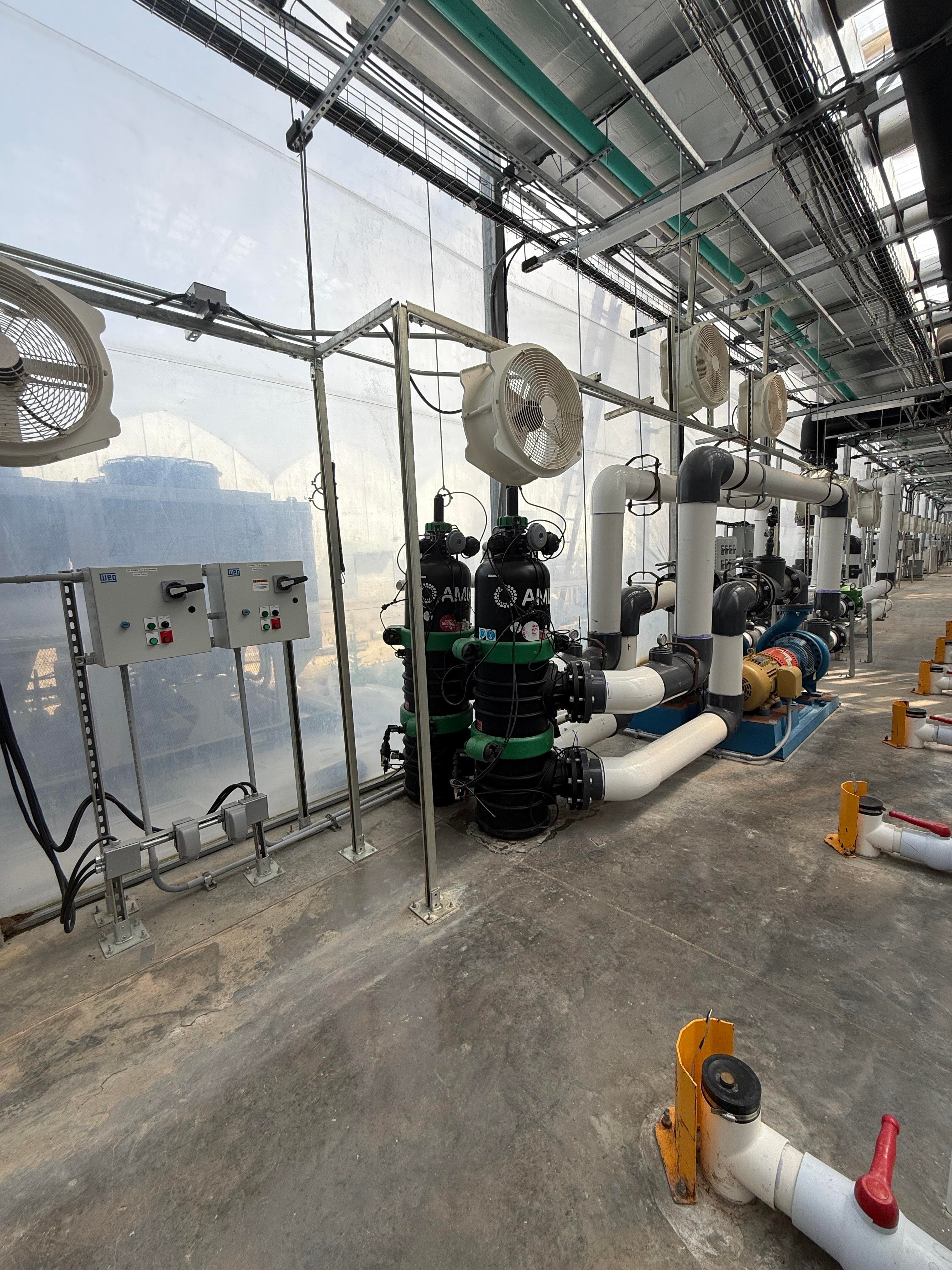

Complete South Pump Package removed from a commercial greenhouse irrigation system. Turnkey water handling assembly including Summit centrifugal pump, Baldor Reliance motor, AMIAD Sigma Pro automatic filtration, Bermad control valve, local controls, piping, and mounted components. Designed for irrigation water circulation, filtration, and process pumping applications.
Included Components
• Summit Pump assembly
• Baldor Reliance Super E motor
• AMIAD Sigma Pro automatic filter system
• Bermad automatic control valve

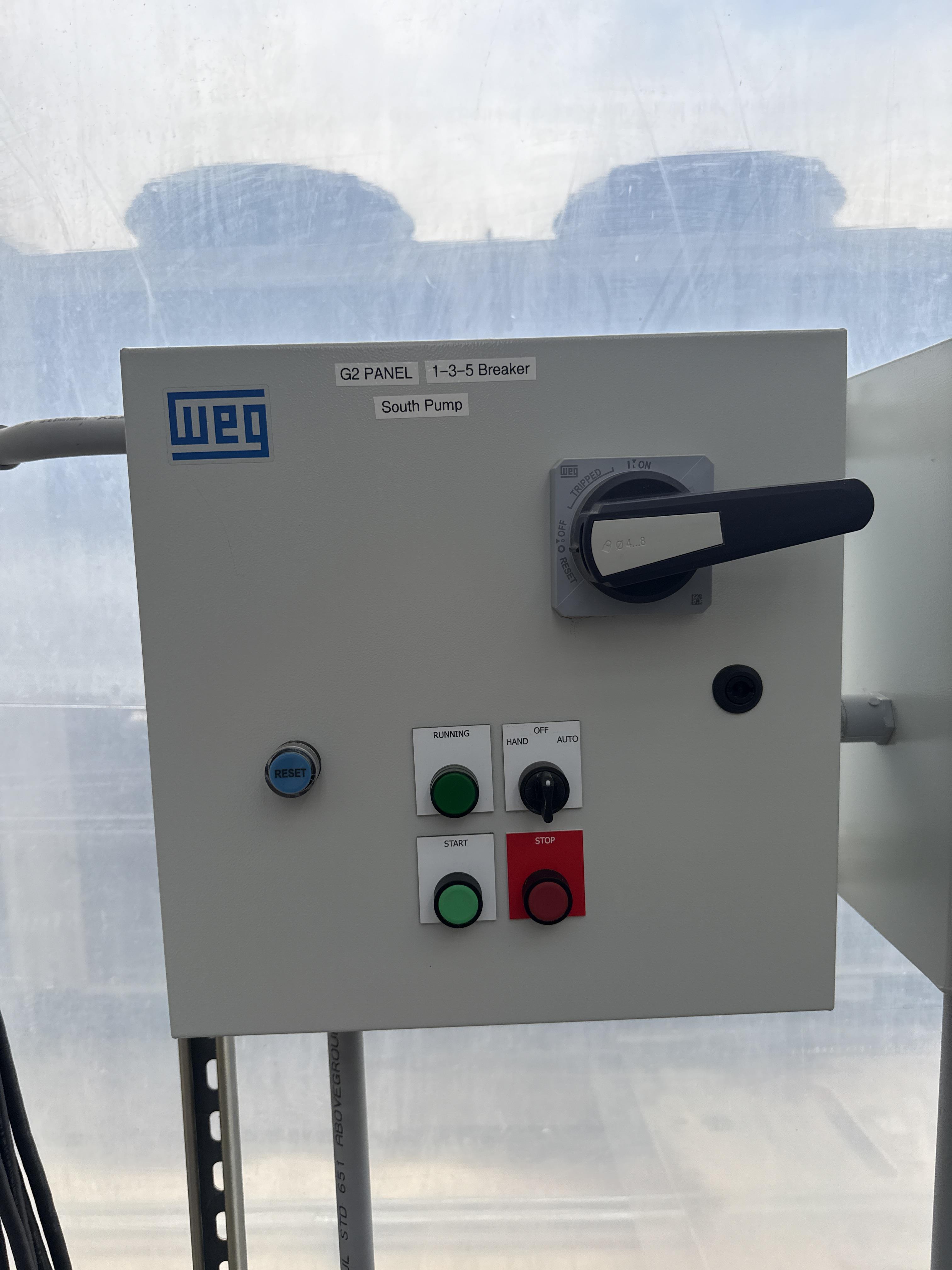

• WEG local starter / control panel
• Connected PVC / process piping
• Mounted industrial base / support structure

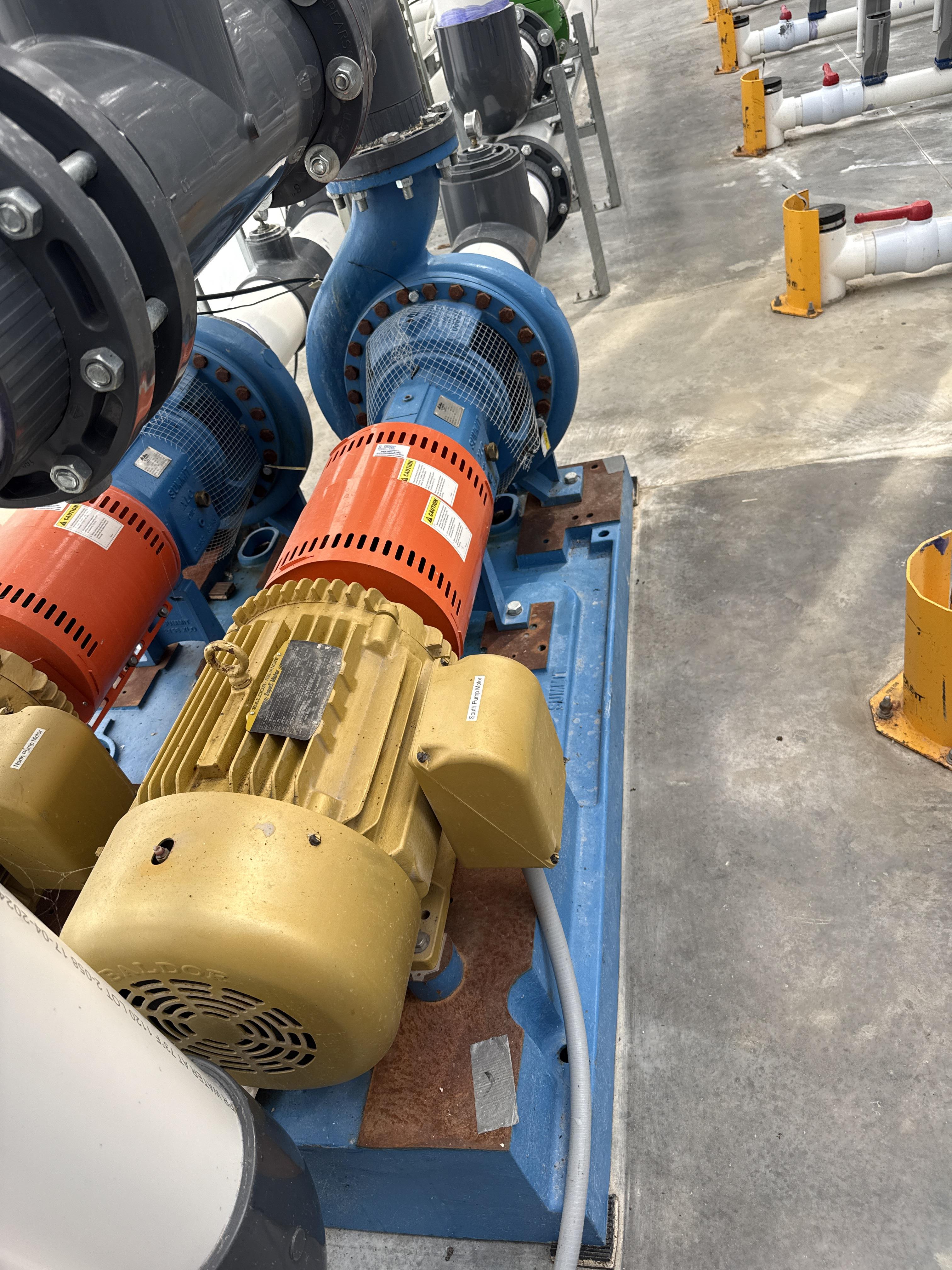

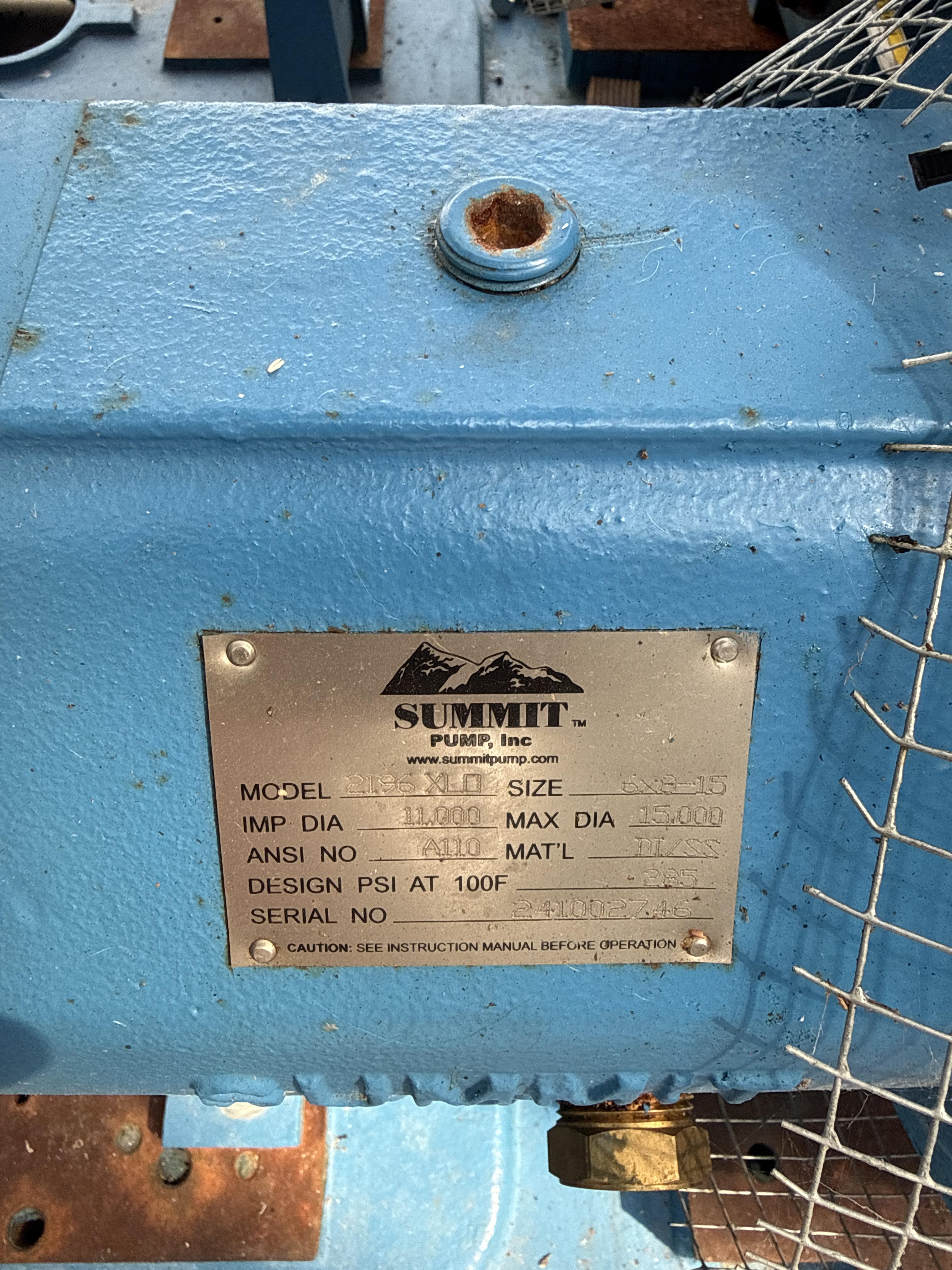

Summit Pump Details
• Manufacturer: Summit Pump Inc.
• Model: 2196XLO
• Size: 6 x 8-15
• Impeller Diameter: 11.000 in
• Max Diameter: 15.00 in

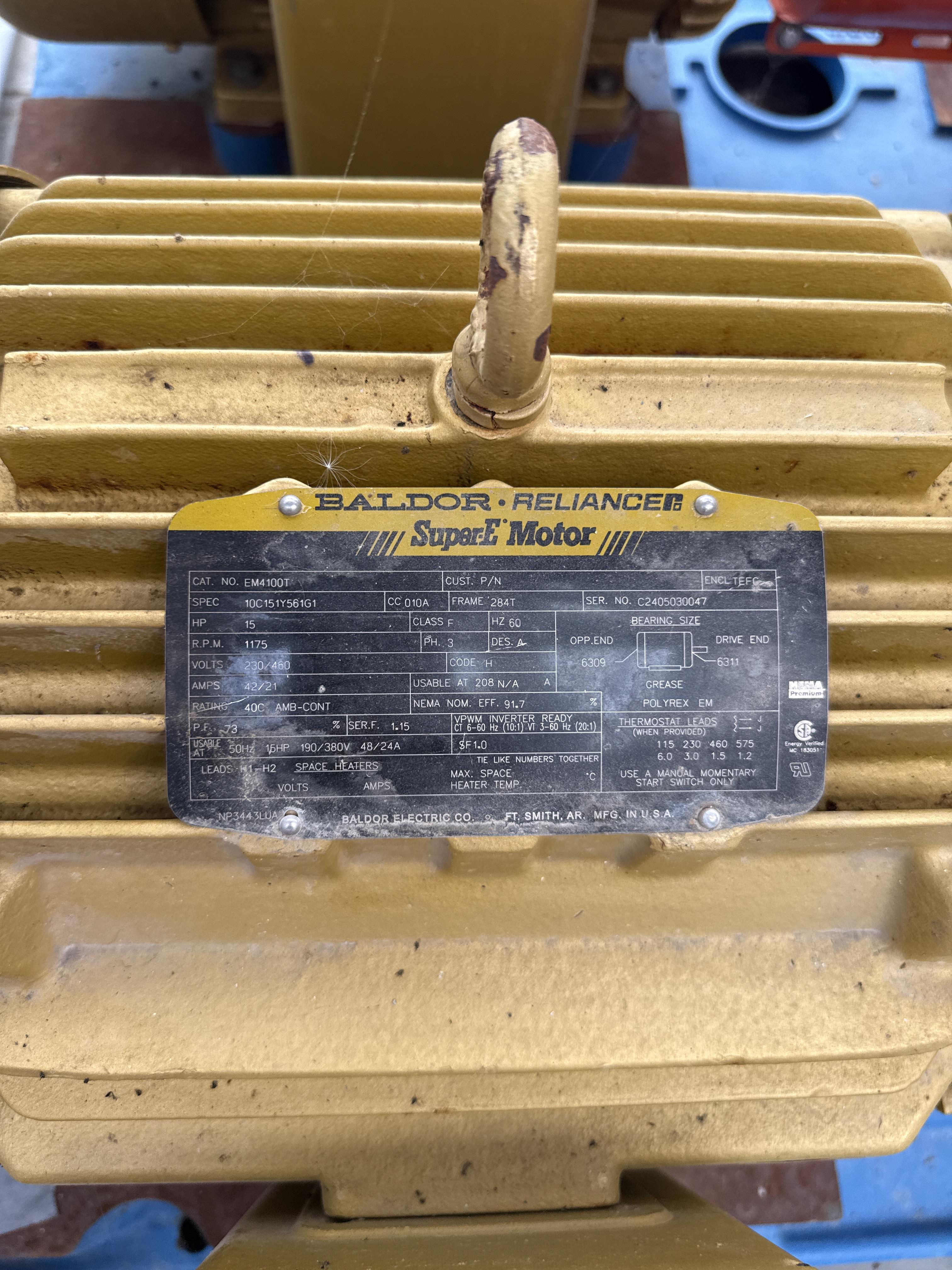

Motor Details
• Manufacturer: Baldor Reliance
• Super E Motor
• 15 HP
• 3 Phase
• TEFC industrial motor

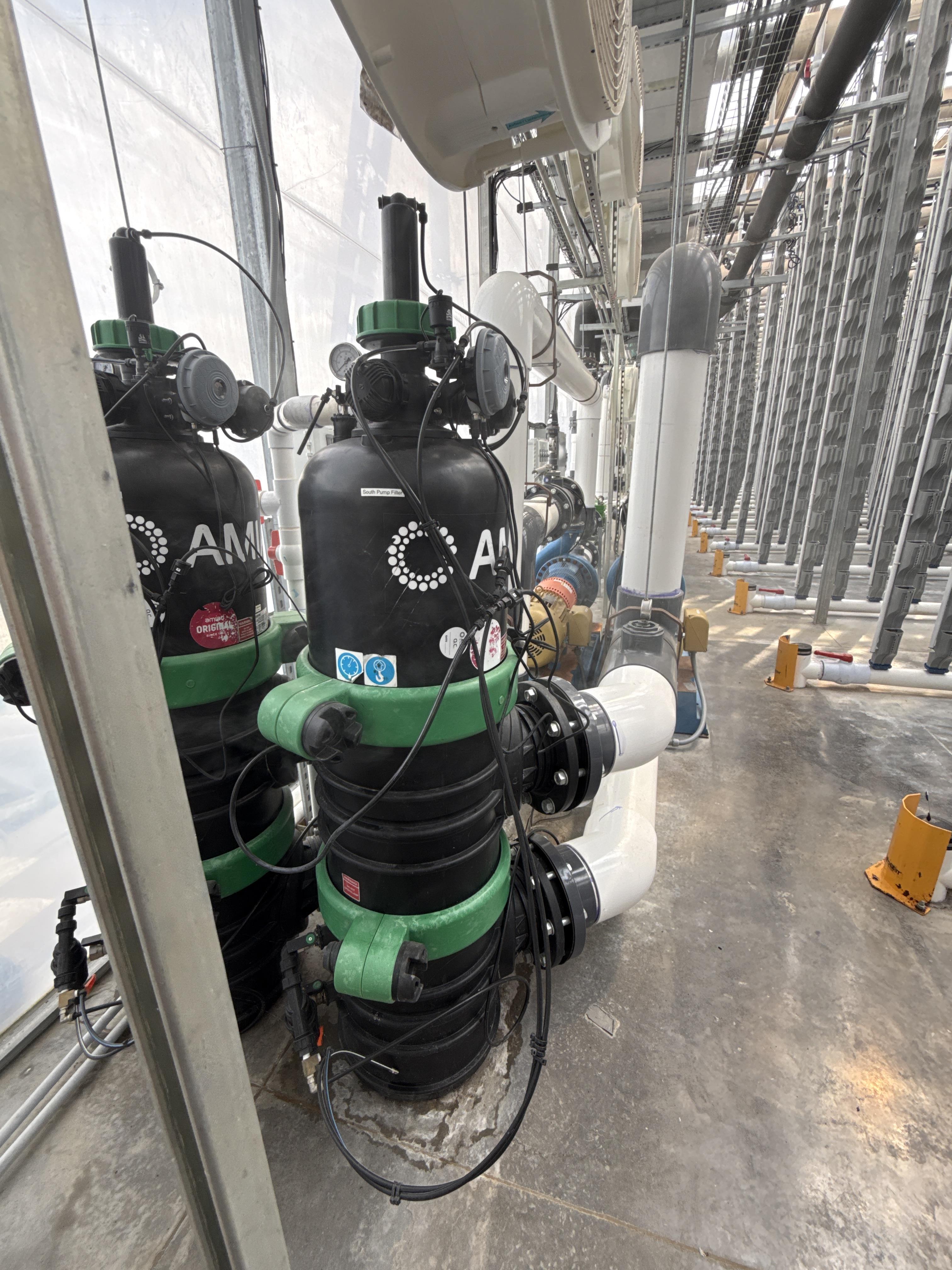

Filter Details
• Manufacturer: AMIAD Water Systems
• Sigma Pro series
• Automatic self cleaning screen filter
• 130 micron
• 145 PSI rating shown
• 10 bar working pressure
• 8 inch inlet / outlet

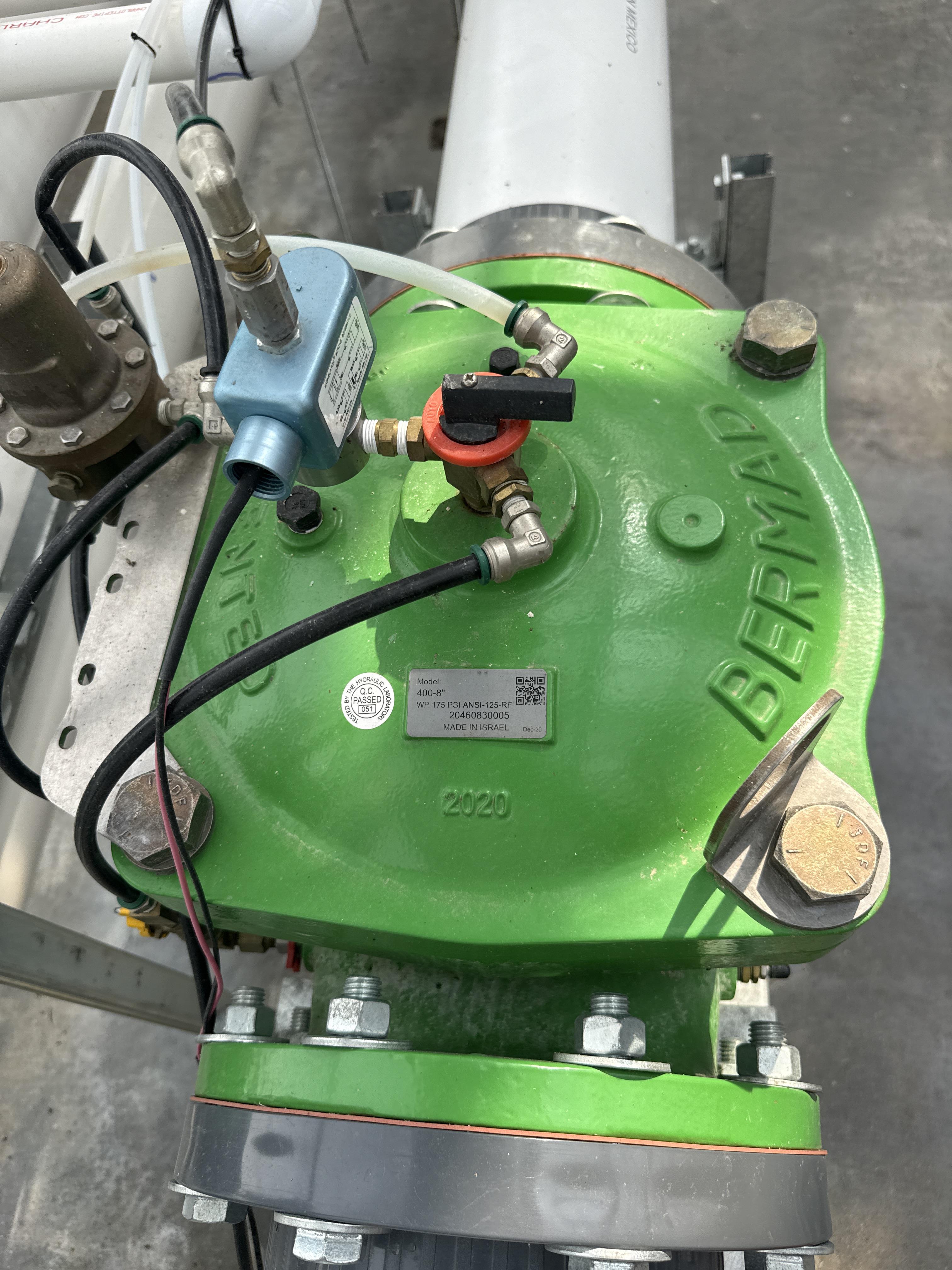

Bermad Valve Details
• Manufacturer: Bermad
• Model: 400
• 8 inch
• WP 175 PSI
• ANSI-125 RF
Typical Uses
• Greenhouse irrigation systems
• Water recirculation
• Fertigation systems
• Filtration and debris removal
• Booster pump applications
• Process water transfer
