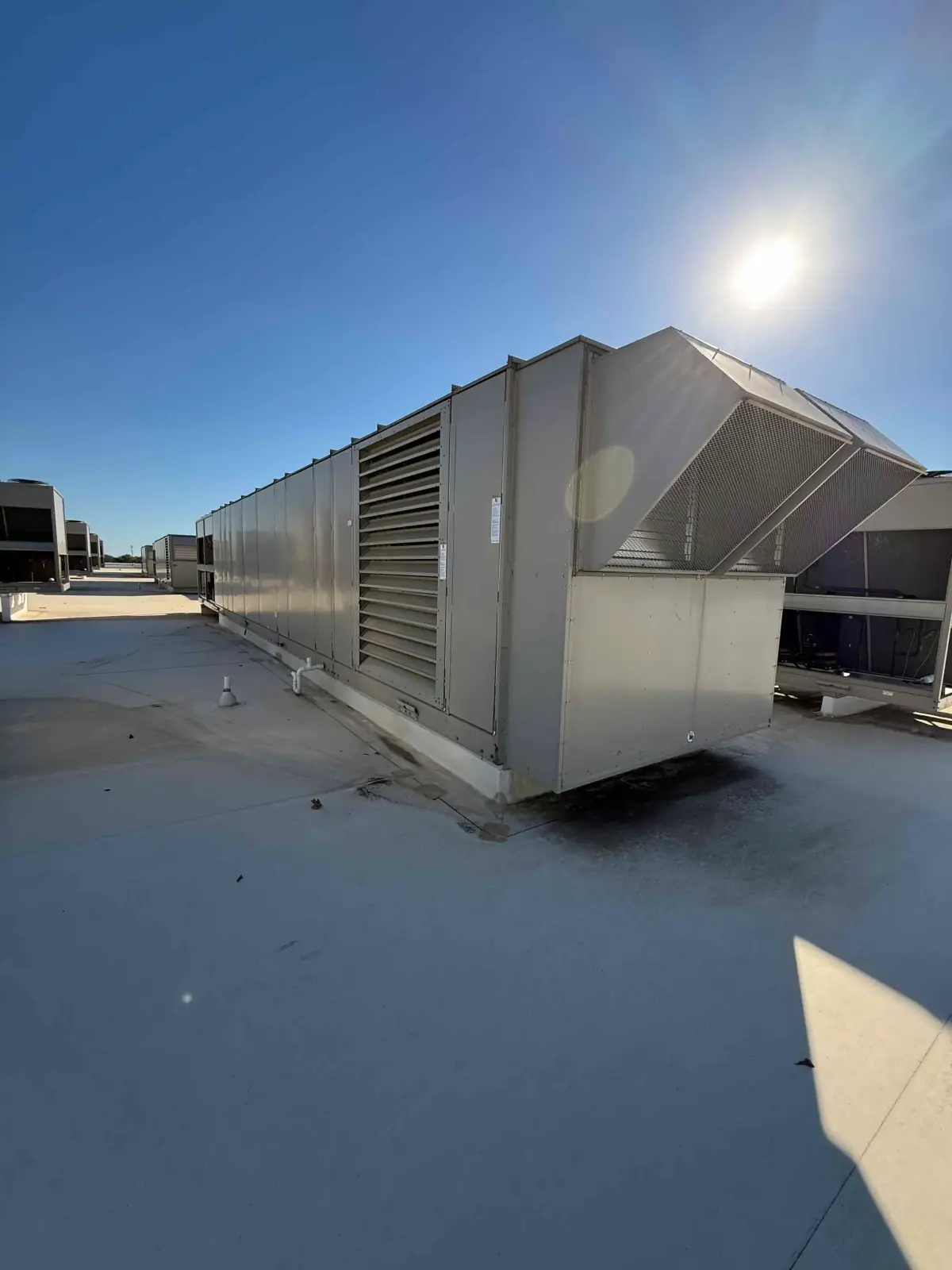

SB6025: RTU-12 – Daikin RPS 130D Rooftop Packaged HVAC Unit, 130 Ton Cooling Capacity, 38 000 CFM Airflow, 460 V 3-Phase (High-Efficiency Air-Cooled DX System)

This listing covers RTU-12, a Daikin RPS 130D RoofPak rooftop HVAC unit engineered for large-scale commercial and institutional environments.

The RPS series integrates compressor, condenser, evaporator, fans, and controls into one factory-assembled, weather-protected package.

Delivering roughly 130 tons of nominal cooling capacity and 38 000 CFM of conditioned airflow, it’s designed to handle heavy internal loads while maintaining reliable year-round operation.

Performance & Features (typical for RPS 130D configuration):

Cooling Capacity: ≈ 130 tons (1 560 000 BTU/h)

Airflow: ≈ 38 000 CFM supply / 32 750 CFM exhaust (as per schedule)

EER: ≈ 9.9 | IEER: ≈ 13.5

Compressor Configuration: Six scroll compressors arranged across multiple DX circuits for load staging and redundancy

Electrical: 460 V, 3-phase, 60 Hz power supply

Supply Fan: ≈ 60 HP motor driving dual blowers (~38 000 CFM @ 2 in WG)

Exhaust Fan: ≈ 10 HP motor (~32 750 CFM @ 0.5 in WG)

Heating Option: Gas heat section (when included) rated for ~1.6 MM BTU/h total input per Daikin RoofPak specifications
