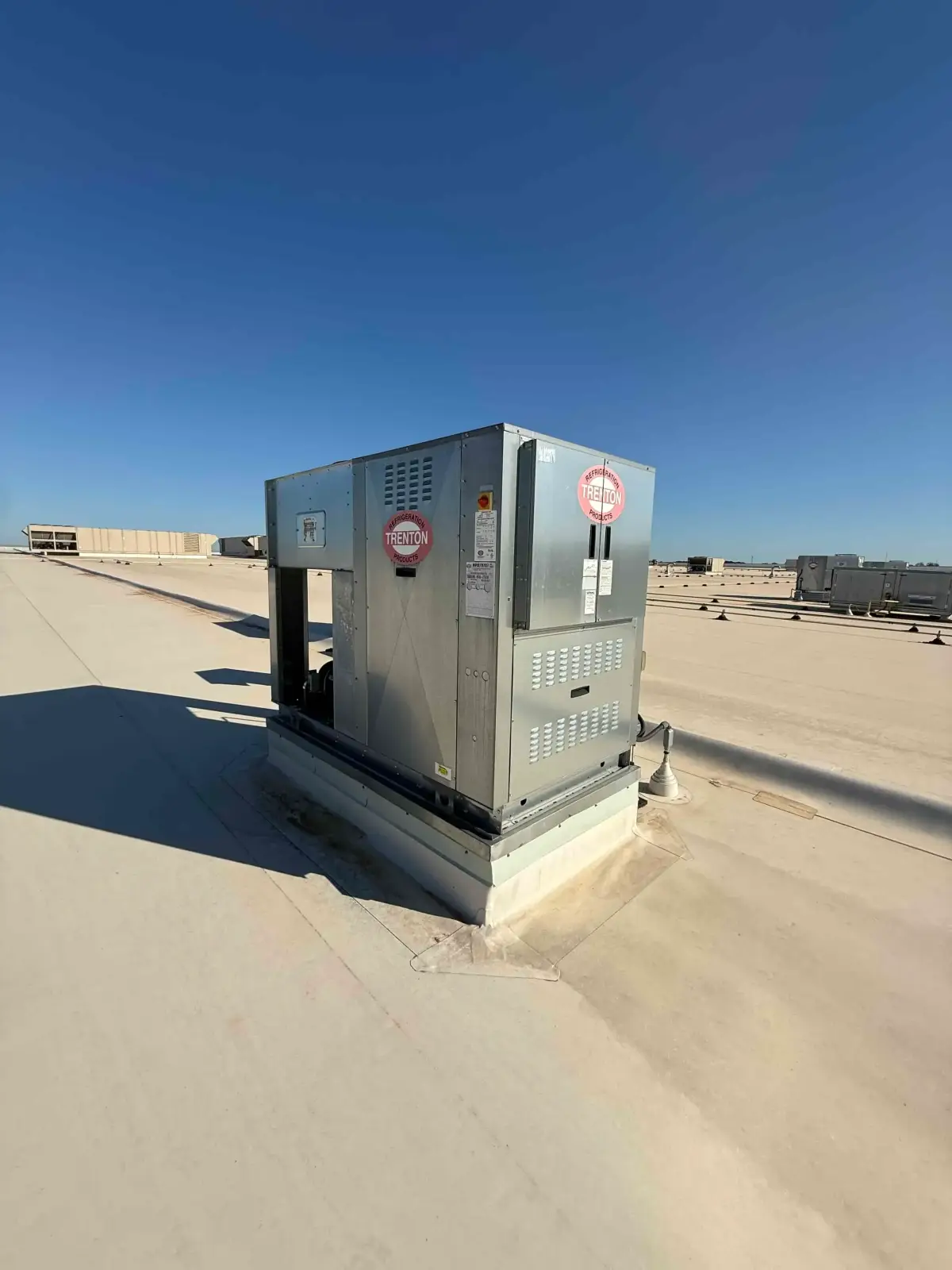

SB6020: RCU-5 – Trenton TMS060MB-HT4A-Z1SB50 Air-Cooled Condensing Unit, 6 HP Copeland Scroll, 460 V 3-Phase (High/Medium Temp, Multi-Refrigerant)

This listing is for RCU-5, a Trenton TMS060MB-HT4A-Z1SB50 outdoor air-cooled condensing unit from Trenton’s TMS series, purpose-built for reliability and efficiency in demanding refrigeration environments. This model features a 6 horsepower Copeland Z-series scroll compressor, optimized for high/medium-temperature applications such as walk-in coolers, refrigerated warehouses, or food-processing systems. The “H” in the model code designates high/medium-temperature operation, while the “8” identifies it as part of Trenton’s multi-refrigerant platform—supporting R404A, R407A, R407C, R448A, R449A, and R507. The “T4” indicates a 460 V 3-phase 60 Hz power supply, standard for heavy-duty commercial installations. Its galvanized steel housing is weather-resistant and service-friendly, with removable panels and top-discharge condenser fans. The unit’s compact, durable construction makes it well-suited for rooftop or ground-mounted setups. Key specifications: Manufacturer: Trenton Refrigeration Model: TMS060MB-HT4A-Z1SB50 Compressor: Copeland scroll (Z-series), ~6 HP Cooling capacity: Approx. 60,000 BTU/hr @ +20 °F SST, 100 °F ambient (R404A) Application: High/medium-temperature refrigeration Refrigerant compatibility: R404A, R407A/C, R448A, R449A, R507 Electrical: 460 V, 3-phase, 60 Hz Connections (typical): 1-1/8″ suction, 1/2″ liquid ODF Cabinet: Outdoor galvanized-steel frame with top-discharge condenser fans Condition: In-place installation; buyer responsible for lockout/tagout, refrigerant recovery, full disconnection, gas-line demo and capping, duct and piping removal, and rigging/removal per site and EPA standards.
