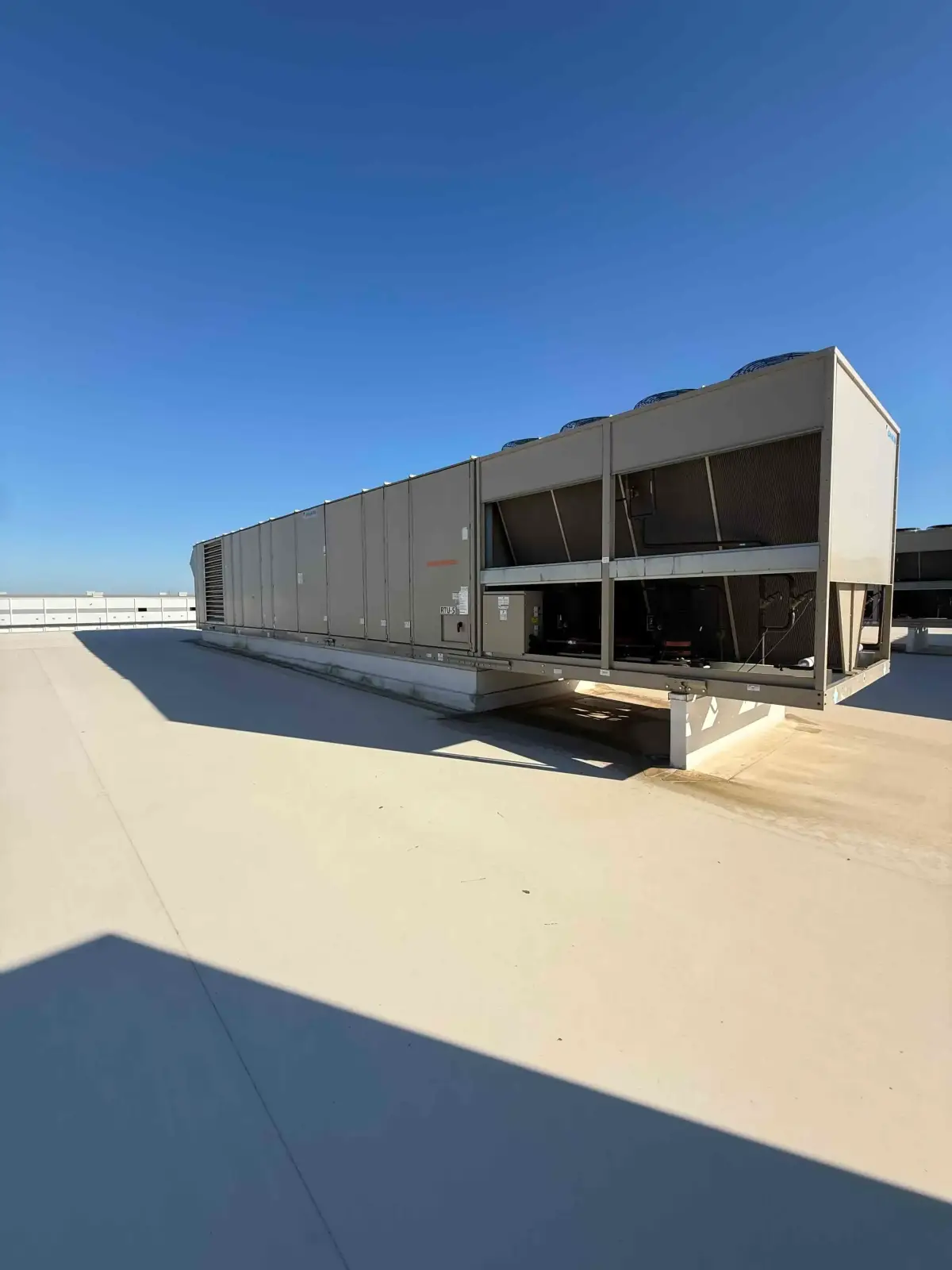

SB6003: RTU-5 – Daikin RPS 130D Rooftop Packaged HVAC Unit, 130 Ton Nominal, ~38,000 CFM Supply Airflow, Air-Cooled DX Package

Offered is RTU-5, a Daikin RPS130D packaged rooftop system designed for large, high-load cultivation spaces. It delivers about 130 tons of DX cooling with gas heat, sized for dense lighting and recirculating air systems common in indoor agriculture. Key technical details (per project schedule): Model: RPS130D (RoofPak series) Nominal cooling: 130 tons (DX coil ~1686 MBH total, ~1040 MBH sensible) Airflow: ~38,000 CFM supply; ~32,750 CFM relief/exhaust Fans: supply ESP ~2.0 in.w.c.; motor ~60 HP, ~51.8 BHP (dual supply fans) Exhaust section: ~0.5 in.w.c. @ ~10 HP, ~9.8 BHP Efficiency: EER ~9.9, SEER ~13.5 Compressors: 6 (staged for part-load efficiency and redundancy) Entering/Leaving coil temps (design): ~72/62.6 °F EDB/EWB; ~46.2 °F leaving Coil air-side pressure drop: ~0.76 in.w.c. Refrigerant: R-410A Electrical: 460 V, 3-phase, 60 Hz (industrial service) Filters: pre-filter and final filter sections with listed MERV ratings (per schedule) Approx. weight: ~21,500 lb (verify on site for rigging) Factory features called out on the schedule notes (varies by unit—verify on inspection): non-fused disconnect, GFCI convenience outlet, flat roof curb, smoke detector, BACnet/communication card, economizer (dry-bulb), condenser coil hail/blanket insulation, compressor sound blankets, humidity/temperature sensor, power exhaust, dual-speed supply fan / VFD provisions. Condition: In-place installation; buyer responsible for lockout/tagout, refrigerant recovery, full disconnection, gas-line demo and capping, duct and piping removal, and rigging/removal per site and EPA standards.
