Macron Dynamics MSA-14S Belt-Driven Linear Actuator w/ Gearbox

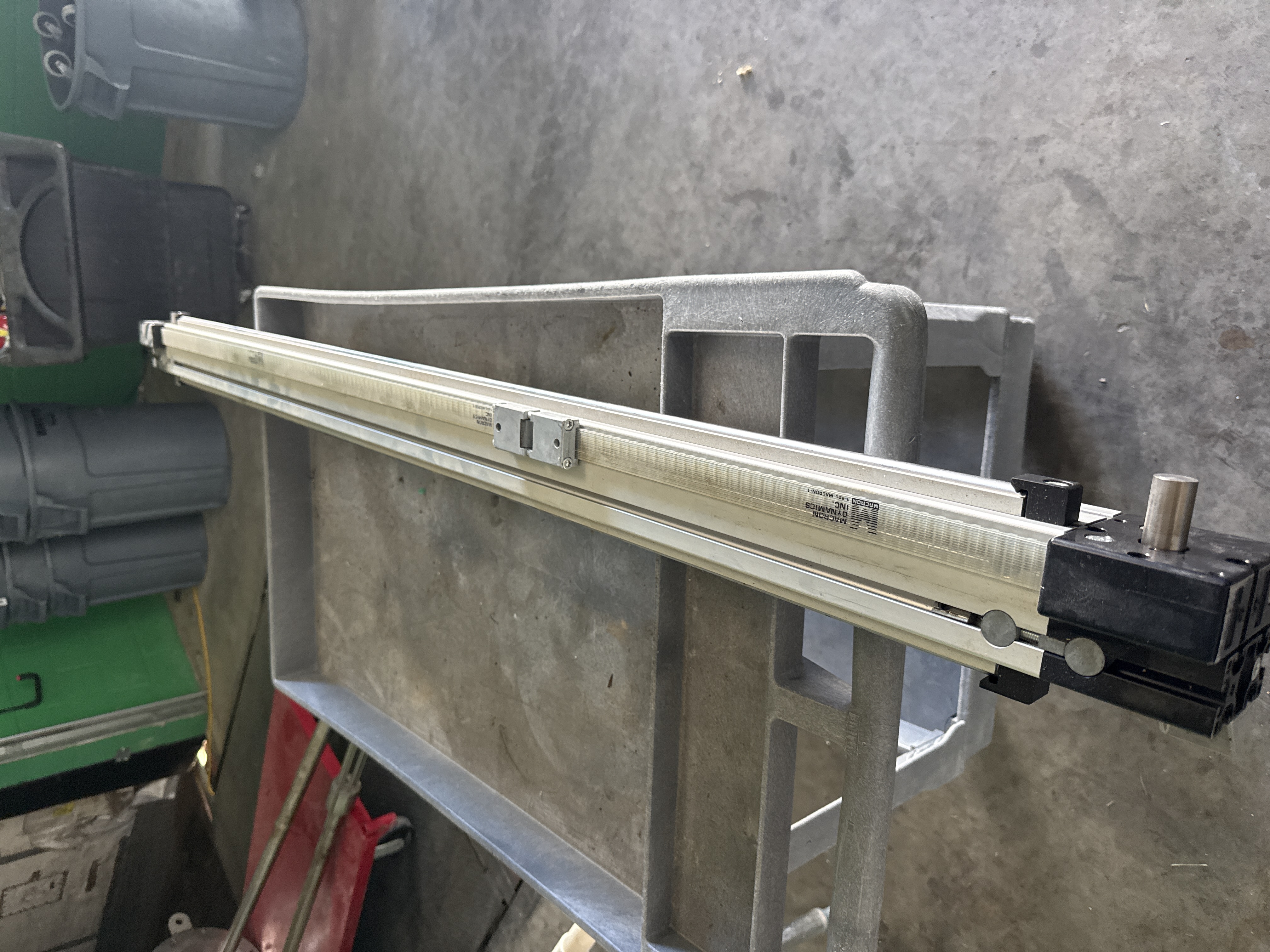

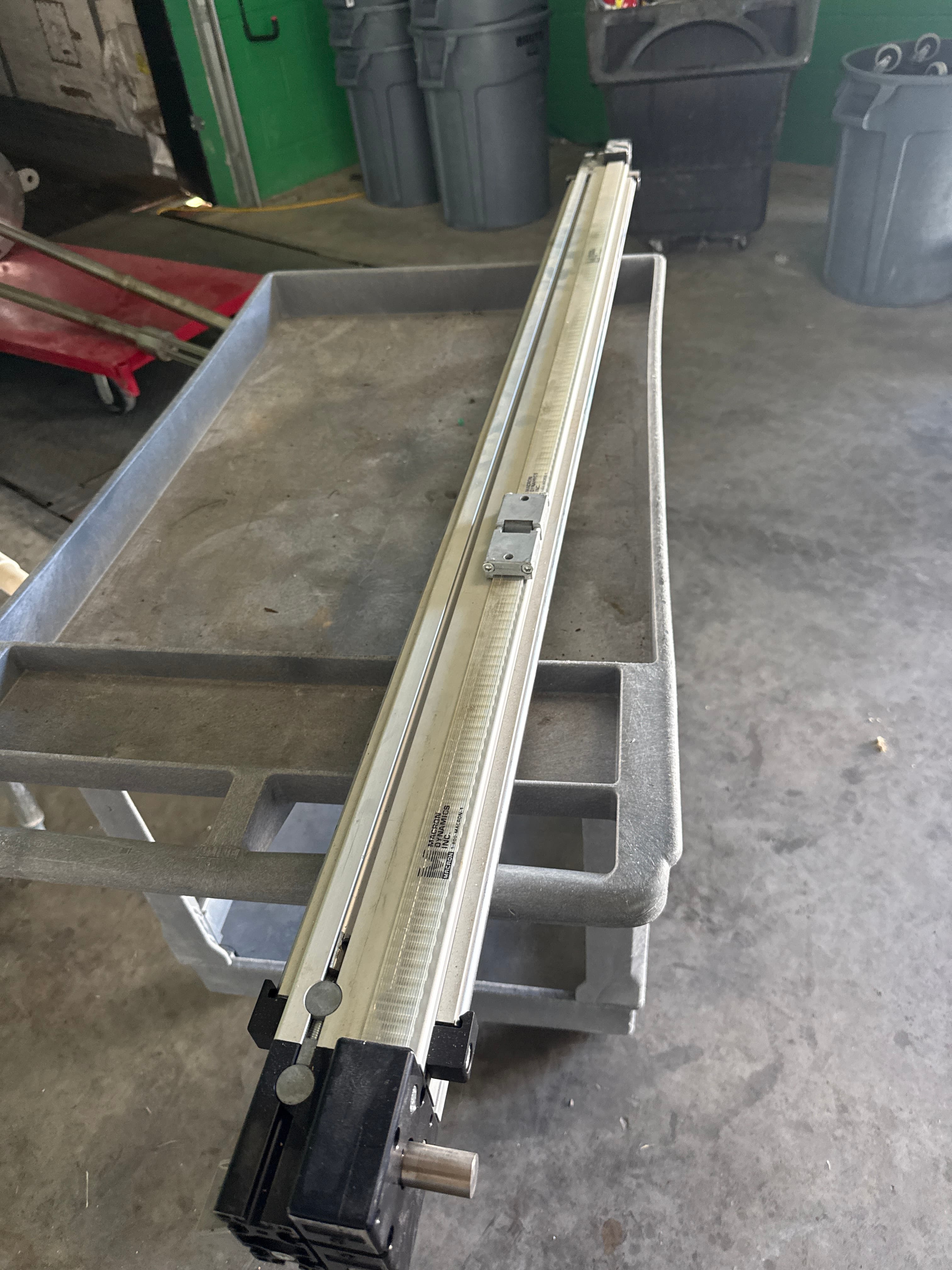

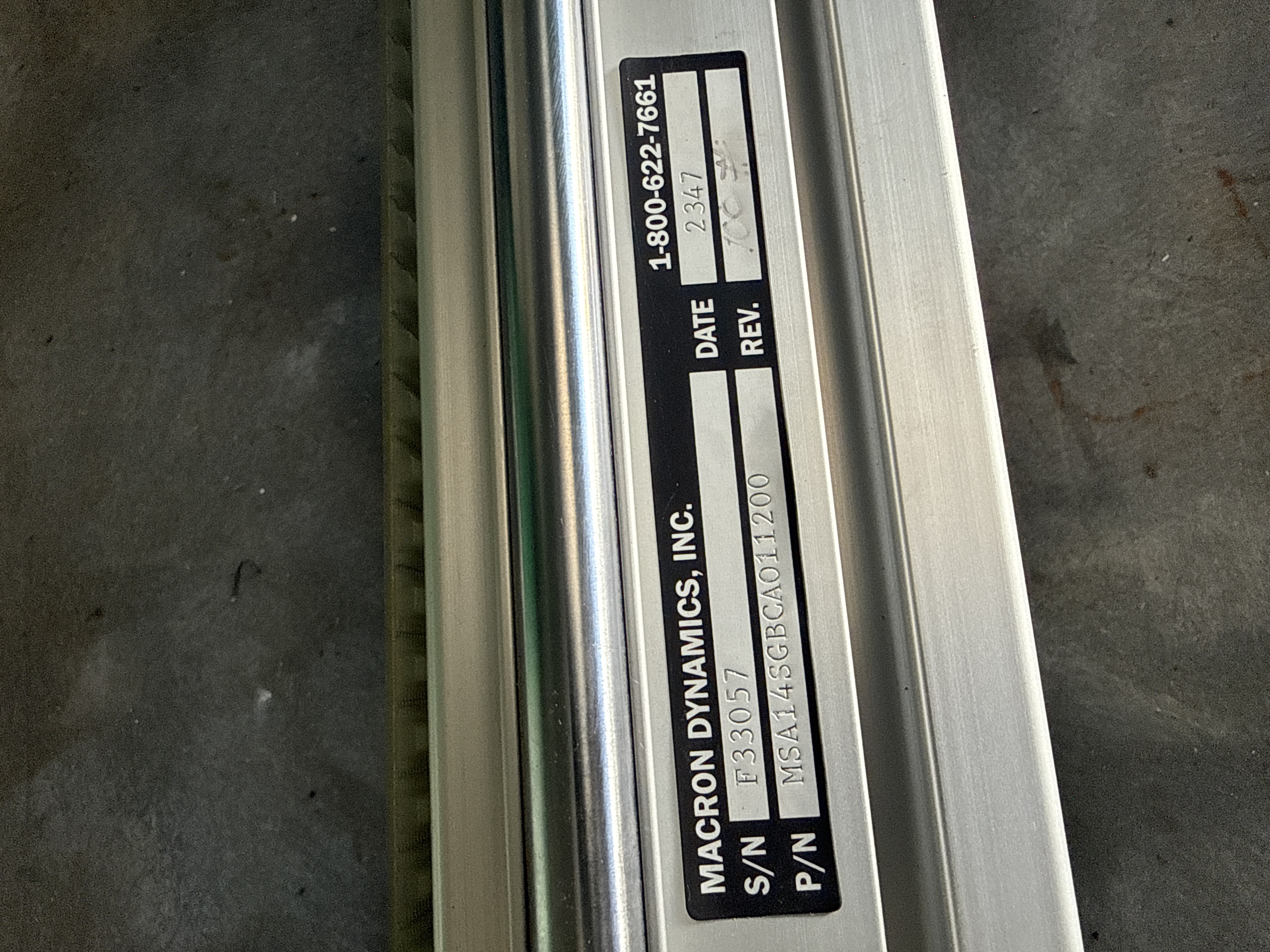

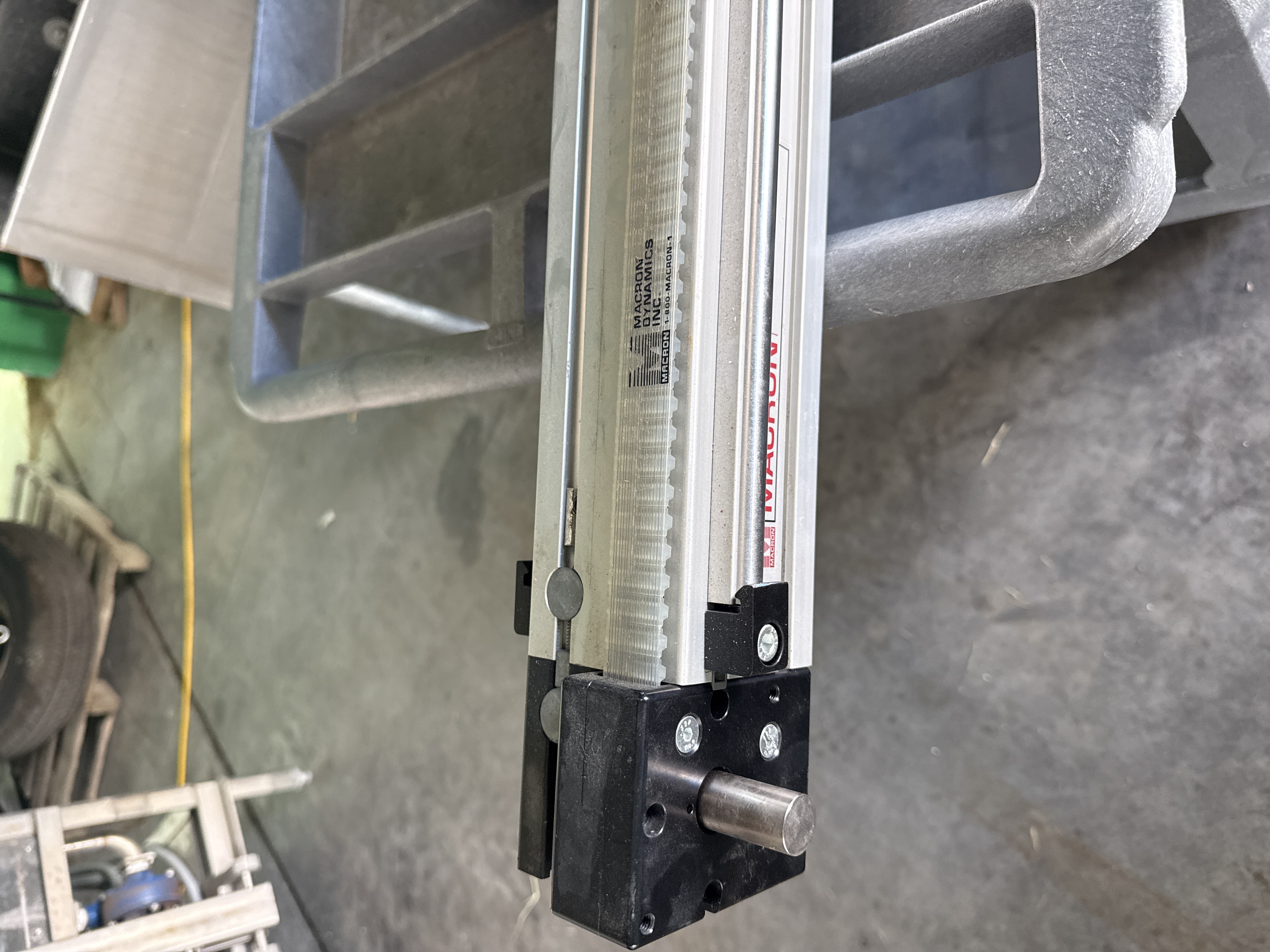

Macron Dynamics MacSTANDARD MSA-14S belt-driven linear actuator (linear robot / slide). P/N MSA14SGBCA011200, S/N F33057. Extruded-aluminum body with T-slots, zero-backlash belt-to-pulley drive, hard-chrome-plated round-rail track rollers, adjustable belt tensioner, and integrated right-angle gearbox with output shaft for servo/stepper mounting. The MSA-14 platform is rated for high-speed positioning (up to ~40 ft/sec) and is used in gantry, pick-and-place, packaging, and automation systems. Long single-axis rail (approx. 5-6 ft travel beam) with carriage and end blocks as pictured. Used, removed from service; sold as-is. Located in Chesterton, IN — shipping available.
