GF +GF+ Type 514 Diaphragm Valve 1/2" CPVC/EPDM, P/N 163.514.612 - Lot of 3 | Chesterton, IN

GEORG FISCHER +GF+ TYPE 514 DIAPHRAGM VALVE - P/N 163.514.612 - LOT OF 3

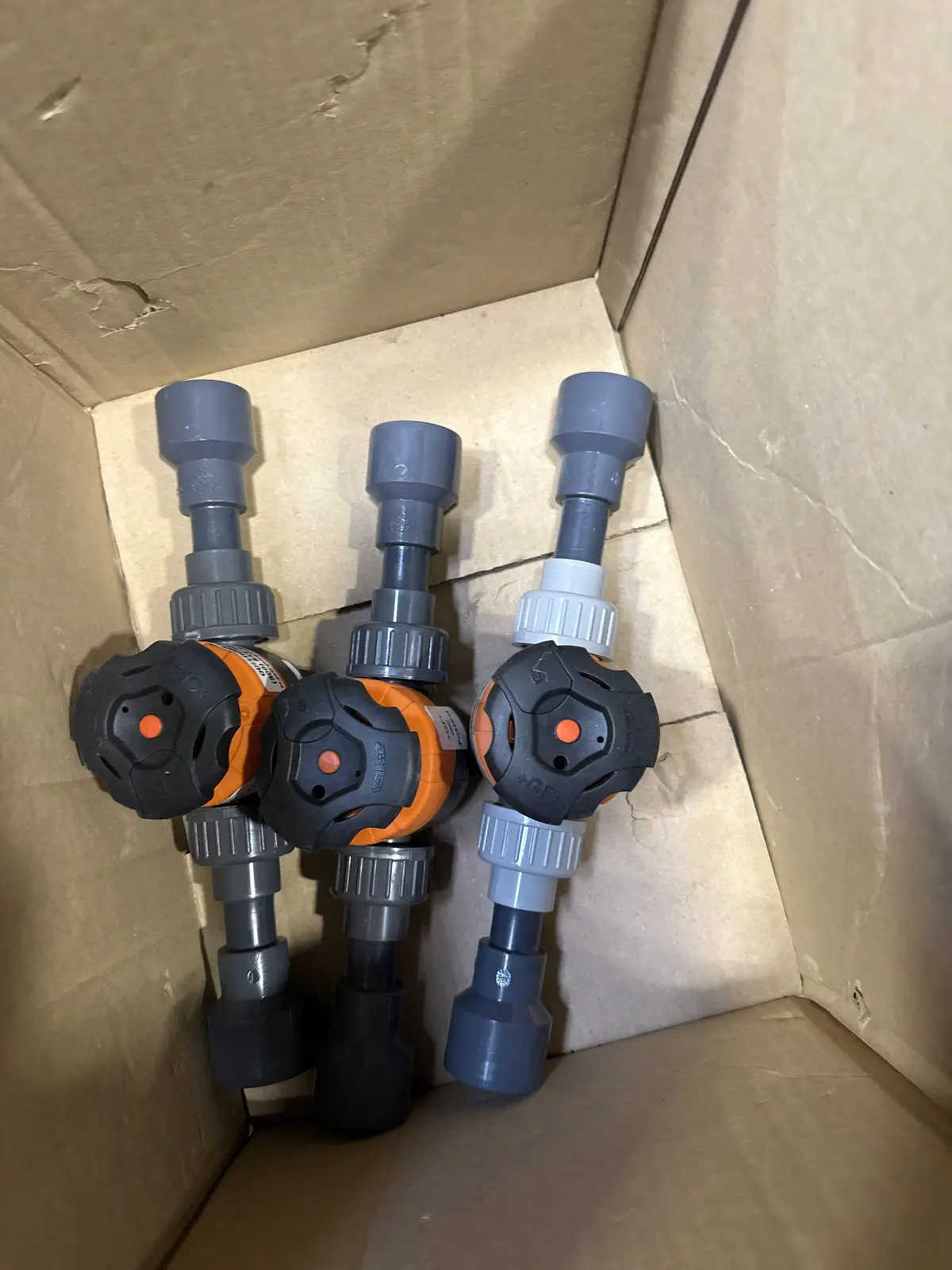

Three Georg Fischer Type 514 true union diaphragm valves, still carrying their factory +GF+ part labels.

WHAT IS INCLUDED

- 3 x GF Type 514 diaphragm valves, P/N 163.514.612

- Factory labels reading "DIAPH VALVE 514 / 163.514.612 / 5768762-002" and "EPDM SEALS"

- Each valve has PVC spigot/adapter stubs fitted to the union ends as pictured (one carries a short black pipe stub)

SPECIFICATIONS (P/N 163.514.612 per Georg Fischer catalog data)

- Type: 514 true union diaphragm valve, manually operated

- Size: 1/2 inch

- Body material: CPVC

- Diaphragm / seal: EPDM

- End connections: socket, true union both ends

- Flow: bidirectional

- Bonnet-to-body: threaded

- Handwheel: lockable, with open/close position indicator

- Max pressure: 232 psi (PVC/CPVC, water service)

- Seat testing: exceeds Class VI bubble-tight standards

WHY THE 514 MATTERS

The true union design is the whole point - both ends break loose so the valve comes out of the line for diaphragm replacement without cutting pipe. Diaphragm valves handle slurries, dosing chemistry and dirty water that would chew up a ball valve seat, and the EPDM diaphragm suits water, dilute acids and bases, and most nutrient chemistry.

WHO BUYS THIS

Greenhouse and CEA fertigation skids, water treatment and RO systems, chemical dosing panels, aquaculture, plating and process lines, pool and spa chemical feed - anywhere 1/2 inch CPVC is the line material.

CONDITION - PLEASE READ

Removed from inventory/service. Bodies and handwheels are clean with factory labels intact and no visible cracks or crazing, but the union ends have adapter spigots solvent-welded on, so these are not sealed-carton new. NOT pressure tested, cycled or leak checked by SecondBloom. Diaphragm condition has not been inspected - budget for a replacement diaphragm kit if this is going into critical service. Sold as-is with no warranty.

VALUE REFERENCE

Distributor list on P/N 163.514.612 runs about $370 each, roughly $1,110 for three.

NOTE: SecondBloom also has separate larger lots of GF 514 valves (PVC-U body) listed from a different location. This lot is the 1/2 inch CPVC part number pictured, located in Chesterton, Indiana.

LOGISTICS

FOB Chesterton, Indiana 46304. Shipping is NOT included and is not offered through the platform for this lot. Buyer is responsible for pickup or for arranging and paying their own carrier.

Sold as-is, where-is. Questions or to schedule an inspection, contact SecondBloom Auctions at info@secondbloomauctions.com or (312) 497-6522.
