SB6026: Smart Fog ES100-1 Humidification System Package – 4-Zone Intelligent Controller (CPLC-4 Class), PS4 Control Center, ZeroTDS 4-Stage Filter (ZTD6300A Class Mounted Above Chamber by Germination Rooms

This lot features a complete Smart Fog ES100-1 humidification system designed for multi-zone humidity management in indoor farming, germination, and propagation environments.

The system includes a CPLC-4 intelligent controller, PS4 four-zone control center, ZeroTDS ZTD6300A four-stage filtration system, and ES100-1 humidifier distributor, all configured for high-efficiency, non-wetting fog generation.

The filtration system is physically mounted above the main chamber near the germination rooms, where it supplies purified water to the fog distribution network.

This elevated mounting location allows for simplified piping layout and stable water delivery pressure across all four humidity zones.

System Components and Features:

Humidifier Distributor (ES100-1):

Direct-space adiabatic fogging unit generating ultra-fine 4 µm droplets for precise, non-wetting humidification. Designed for direct integration into grow rooms, germination chambers, or environmental tunnels.

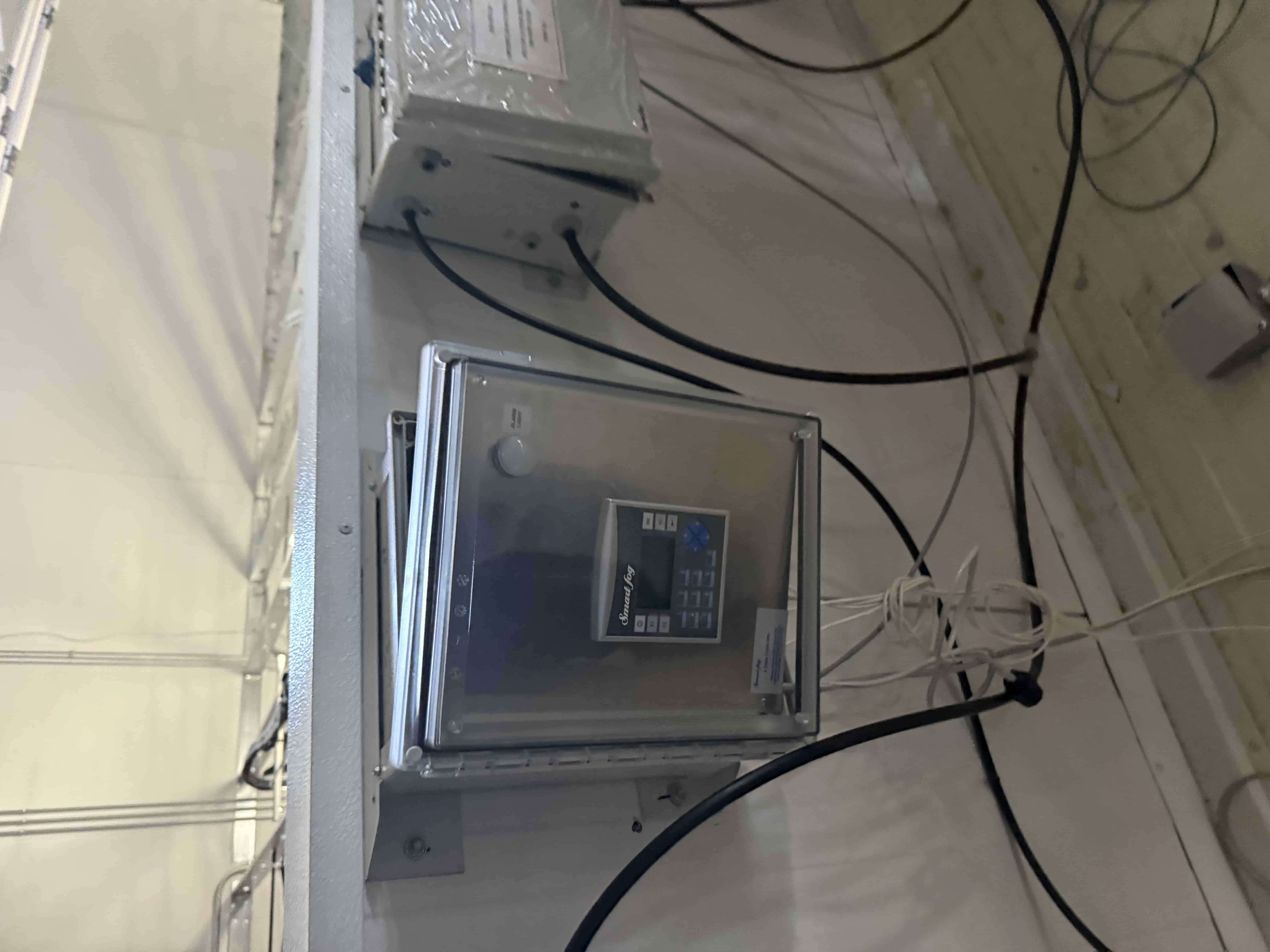

4-Zone Intelligent Controller (CPLC-4 Class):

Industrial PLC-based control with multi-zone management, automated duty cycling, and real-time humidity feedback. Enables independent RH setpoints for propagation, germination, and vegetative zones.

4-Zone Control Center (PS4):

Central hub managing solenoids and power for up to four humidity zones. Mounted within easy access of the distribution manifold.

ZeroTDS 4-Stage Filtration (ZTD6300A Class):
